Overview of 焊接式牵引销系列

Advantage of 焊接式牵引销系列

Mature technology, could be produced in large quantity at competitive cost
Shipped both by container, or bulk shipment.
Nice and attractive appearance
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

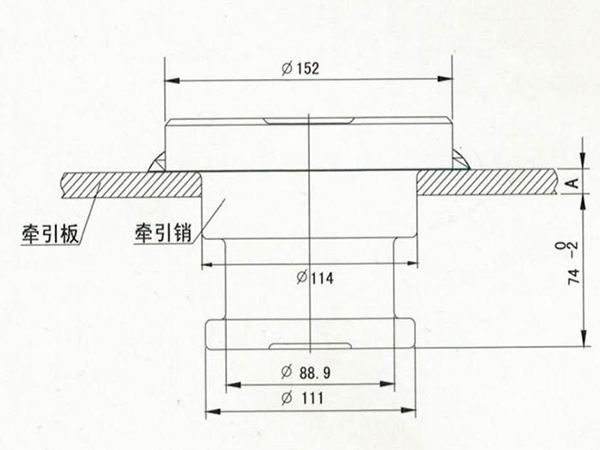

3.5''Welded Kingpin
Model	D-Value(KN)	Skid Plate Thickness
KPEW9010	174	10
KPEW9012	174	12
Kingpin Instruction The Function Of Kingpin Is To Engage The Semi-Trailer To The Fifth Wheel. The Kingpin Is The Most Critical Component Used In The Load Transfer From Semi-Trailer. Making A Selection The D-value And The Thickness Of The Welding Plate Are Two Considerations In Making A Kingpin Selection For A Semi-Trailer Design. The Actual D-value Of The Selected Kingpin Must Be Larger Then The Calculated D-value . Then Determine The Thickness Of The Skid Plate. 2. Kingpin Installation Welding On A Channel Support For The 2 Inch Welded Kingpin,Must Be More Than 110mm Between Welds. 3. Kingpin Operation Operation Of The Semi-Trailer Will Cause Normal Wear On The Kingpin, Due To Abrasion. The Following Are The Limits Of Wear Allowable: 2'' Kingpin: A ≥49mm 3.5'' Kingpin: C ≥86mm B ≥71mm D ≥112mm

FUWA Welded King Pin series is applicable on any Ultraton Semi Trailer as critical part to connect tractor and trailer.

Pre-sales Services

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
