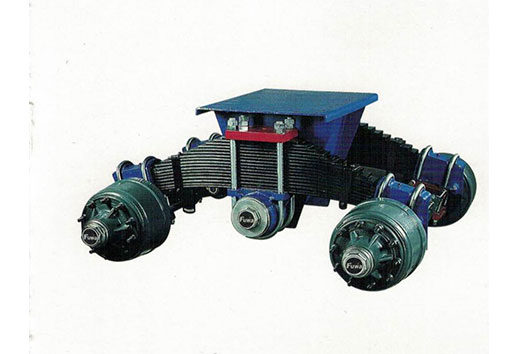

Overview of FW31 和 FW32（32 吨）单点悬挂

Heavy duty and extra durability designed in comply with National Standard
Material of superior quality option for SUP9 or 60Si2Mn for leaf spring
Improved design of a single welded bracket with reinforced plates instead of hangers, reduce the common front and rear brackets of the leaf spring connected to the vehicle body, makes the force point distributed on the front and rear axles directly
Design for 2 axles installation with 16ton each
Connection to the trailer body is optional for bolt-in and welded type
Usually applicable for square beam trailer axle

Advantage of FW31 和 FW32（32 吨）单点悬挂

Mature technology and reasonable design ensure good quality and competitive cost.
FW31 and FW32 (32Ton) Cantilever Dread Suspension uses steel leaf spring as the spring element, to achieve stronger rigidity and strength.
Advanced workmanship and skilled technician team ensure strength of single bracket welded by reinforced steel plates.
Light weight,reduced impact on the body and improved ground adhesion of the wheel.
Softer springs with less stiffness to improve the comfort of the vehicle.
Lower engine position and lower vehicle center of gravity In order to improve the driving stability.
The left and right wheels are individually beating and irrelevant, which can reduce the tilt and vibration of the trailer body.
Fast response and flexible service from our professional team.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

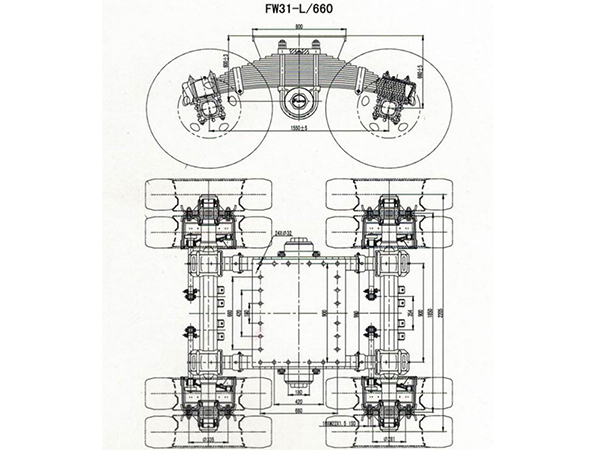

FW31-L/660 Type(32T) Bolt-In Cantilever Dread Bogie Suspension Series
Model	Axle Type	Axle Load (KG)/(80km/h)	Rim Specification	Tire Specification
FW31-900/660	FW2462XE02AA	32,000	8.00V-20	11.00R20

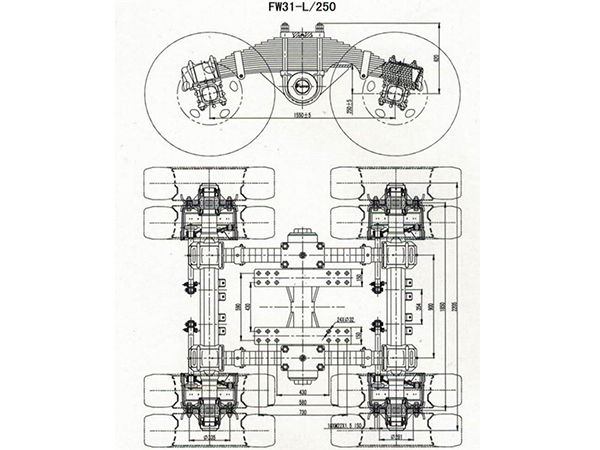

FW31-L/250 Type(32T) Bolt-In Cantilever Dread Bogie Suspension Series (Low-Loader)
Model	Axle Type	Axle Load (KG)/(80km/h)	Rim Specification	Tire Specification
FW31-900/250	FW2462XE02AA	32,000	8.00V-20	11.00R20

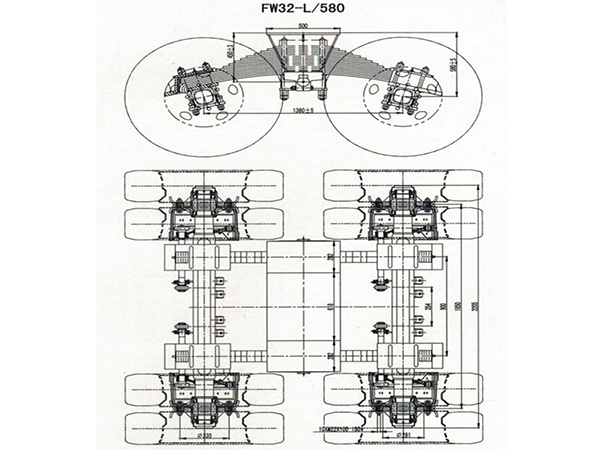

FW32-L/580 Type(32T) Welded Cantilever Dread Bogie Suspension Series
Model	Axle Type	Axle Load (KG)/(80km/h)	Rim Specification	Tire Specification
FW32-900/580	FW2462XE02AA	32,000	8.00V-20	11.00R20
Note: Tire Optional:12.00R24

Application of FW31 和 FW32（32 吨）单点悬挂

FW31 and FW32 (32Ton) Cantilever Dread Suspension is applicable on any Ultraton Semi Trailer in heavy duty need, especially for Middle East and Africa market.

Other notes of FW31 和 FW32（32 吨）单点悬挂

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
