Overview of 螺栓式主销系列

Manufactured from high tensile drop forging and heat treated.
Types are complete and optional for welded series and bolt-in series.
Advanced workmanship and superior quality of steel material.
Size is optional for 50.8mm dia and 89mm dia which is In comply with national standard and ADR.

Advantage of 螺栓式主销系列

Mature technology, could be produced in large quantity at competitive cost.
Shipped both by container, or bulk shipment.
Nice and attractive appearance.
Fast response and flexible service from our professional team.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

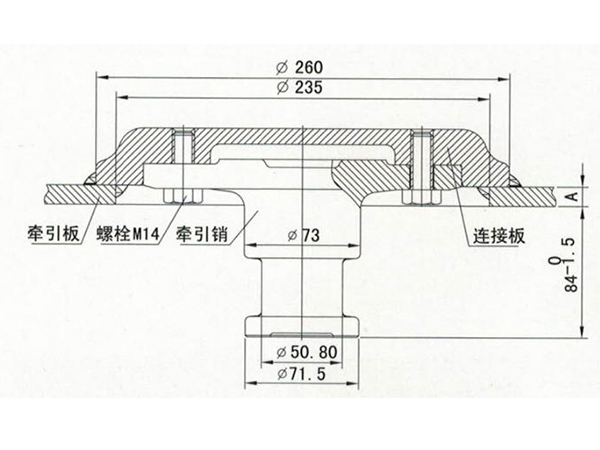

2'' Bolt-In Kingpin Assy
Model	D-value(KN)	Skid Plate Thickness(mm)
KPAB208	240	8
KPAB210	240	10
KPAB212	240	12
KPAB216	240	16

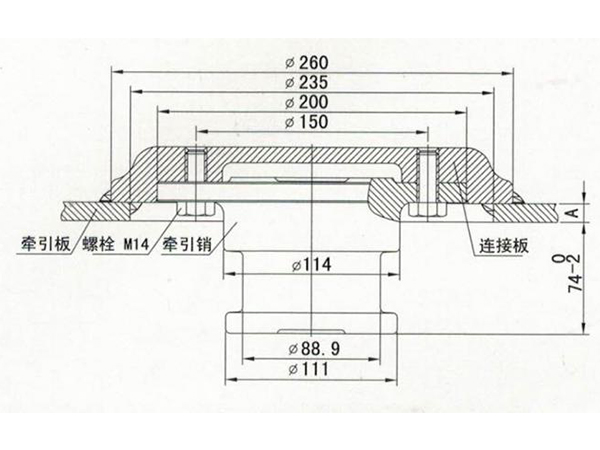

3.5'' Bolt-In Kingpin Assy
Model	D-value(KN)	Skid Plate Thickness(mm)
KPAB9008	240	8
KPAB9010	240	10
KPAB9012	240	12
KPAB9016	240	16
Kingpin Instruction The Function Of Kingpin Is To Engage The Semi-Trailer To The Fifth Wheel. The Kingpin Is TheMost Critical Component Used In The Load Transfer From Semi-Trailer. 1. Making A Selection The D-value And The Thickness Of The Welding Plate Are Two Considerations In Making A Kingpin Selection For A Semi-Trailer Design. The Actual D-value Of The Selected Kingpin Must Be Larger Then The Calculated D-value . Then Determine The Thickness Of The Skid Plate. 2. Kingpin Installation Welding On A Channel Support For The 2 Inch Welded Kingpin,Must Be More Than 110mm Between Welds. 3. Kingpin Operation Operation Of The Semi-Trailer Will Cause Normal Wear On The Kingpin, Due To Abrasion. The Following Are The Limits Of Wear Allowable: 2'' Kingpin: A≥49mm B≥71mm 3.5'' Kingpin: C≥86mm D≥112mm

FUWA Bolt-in King Pin series is applicable on any Ultraton Semi Trailer as critical part to connect tractor and trailer.
