FH66 型轻量化悬挂系列
FH66 型轻量化悬架系列是一种轻量化设计的普通机械悬架，通过 3 片钢板弹簧实现导向并减少冲击载荷和振动。
- Overview
- Advantage
- Other notes
Overview of FH66 型轻量化悬挂系列
Heavy duty and extra durability designed hangers and bushing.
Material of superior quality option for SUP9 or 60Si2Mn for leaf spring.
Equipped with 3x75x22 leaf spring.
Design for 2 axles installation with 10Ton each.
Applicable for both round beam trailer axle and square beam trailer axle.
Installation is applicable for overslung.
Advantage of FH66 型轻量化悬挂系列
Mature technology and reasonable design ensure good quality and competitive cost
FH66 type Lightweight Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength
Simple structure makes easy maintenance
Lighter weight design can meet different need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

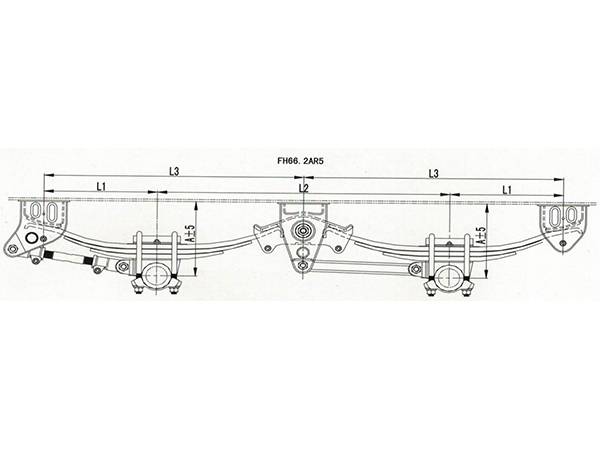

FH66.2AR5 Tandem Suspension With Three Leaf Springs Dimension:8*75*13 | |||||
Model | A (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Axle Load(KG) |
FH66.2/1245/390/AR5/3L | 390 | 482.5 | 1245 | 1105 | 10,000*2 |
FH66.2/1245/415/AR5/3L | 415 | 482.5 | 1245 | 1105 | 10,000*2 |
FH66.2/1245/440/AR5/3L | 440 | 482.5 | 1245 | 1105 | 10,000*2 |
Note: (1) Dimension 'A': Unladen, Rated Laden'A*'=A-30 (2) Suitable For Round / Square Axles (3) Tightening Torque Torque Arm Pin Nuts:150-200N.M. Torque Arm Pin Bolts:90-100N.M. Equaliser Shaft Nuts:290-350N.M. 'U' Bolts Nuts:500-540N.M. Drop Out Bolts:75-85N.M. | |||||
