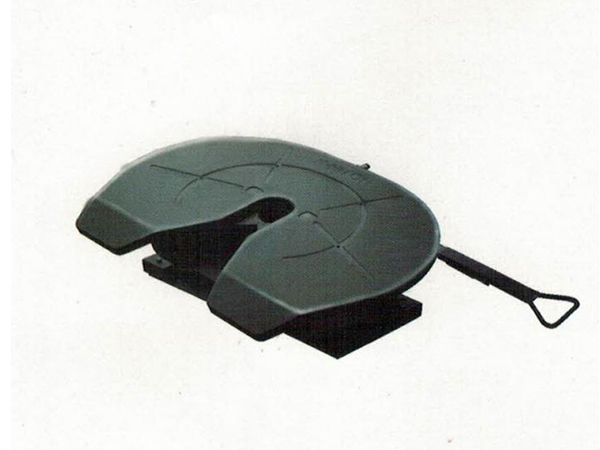

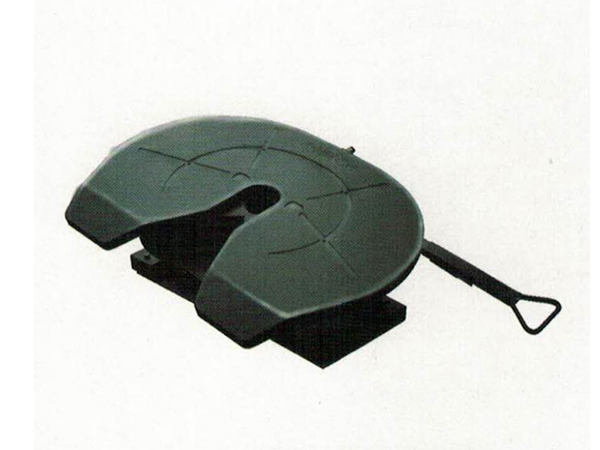

Overview of FW78S 和 FW79S 第五轮系列
Heavy duty and extra durability designed
Adopt unique large radius design and multiple lubrication design
Universal interchangeable wearable collar and locking assembly is available
Special design with different supporting plate, pendulum shaft, rubber mat at the bottom to carry out bigger Oscillation
In comply with ADR standard
Various oscillations available for different need
Advantage of FW78S 和 FW79S 第五轮系列
Mature technology and workmanship offers more stability, greater capacity and longer service life.
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality.
Special design for bigger oscillation is good for service life under complicated road condition, improve the riding comfort and operatability.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

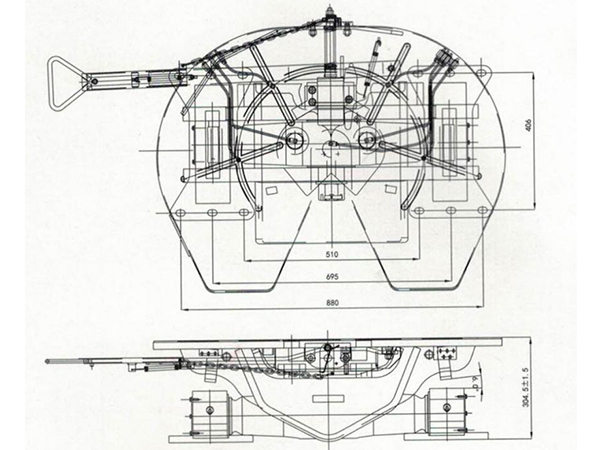

FW78S Fifth-Wheel | ||||||
Model | Mounting Height (mm) | Vertical Load (KG) | D-Value (KN) | Oscillations (a) | Lateral Angular (a) | Net Weight (KG) |
FW78S | 304.5 | 28,000 | 175 | ≥18° | 6° | 394.688 |

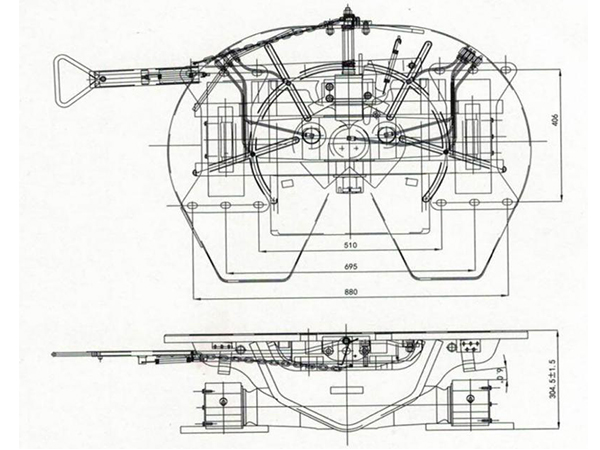

FW79S Fifth-Wheel | ||||||
Model | Mounting Height (mm) | Vertical Load (KG) | D-Value (KN) | Oscillations (a) | Lateral Angular (a) | Net Weight (KG) |
FW79S | 304.5 | 28,000 | 240 | ≥18° | 6° | 396.51 |
Application of FW78S 和 FW79S 第五轮系列
FW78S&FW79S Fifth Wheel Series is applicable on any Ultraton Semi Trailer.
