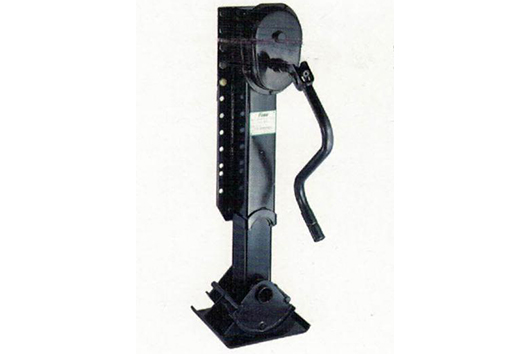

Overview of FW22 着陆架系列

Heavy duty and extra durability designed
Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
Double speed designed for better efficiency
Wider backing mounting plate for greater load bearing capacity and extended life
Type A, G, S, R, T shoes available for different use
One side operation with crank
Meet Safety Regulations for commercial vehicles

Advantage of FW22 着陆架系列

Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

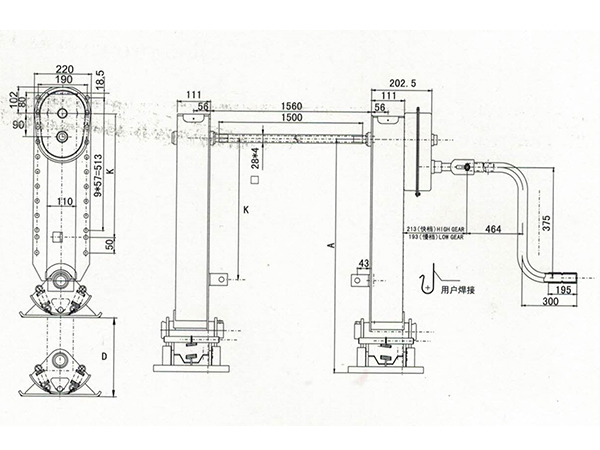

One Side Operation Landing Gear Assy
Model	Type Of Shoes	Lift D (mm)	Height A (mm)	K
FW220001A				480
FW220001LG	LG	430	738	480
FW220001R				480
FW220001S	S	430	790	480
FW220001T				480
FW220002A	A	480	832	530
FW220002LG				530
FW220002R	R	480	815	530
FW220002S				530
FW220002T	T	480	812	530
Standard Specifications Capacity 24,000KG/Pair Static Load 50,000KG/Pair Weight 94KG Crank Force Low Gear 1 mm Per Turn(mm/r) Of Handle High Gear 24.6 mm Per Turn(mm/r) Of Handle One Side Operation Crank Force 24T-32KG

FW22 Landing Gear Series is applicable on any Ultraton Semi Trailer.
