Overview of 3轴60吨半挂侧翻自卸车

16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam, larger design than others of the same weight to balance stress better
Flange and web width & thickness could be customized
Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

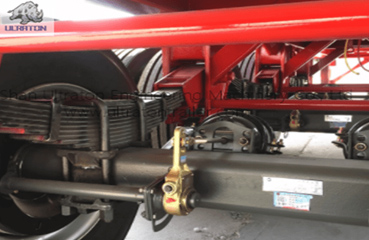

Three-axle balanced design is equipped with a mass balance block between the front and rear leaf springs

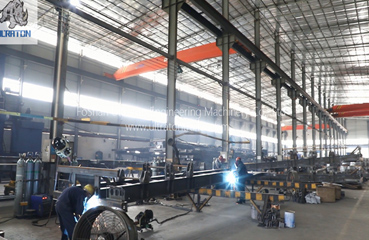

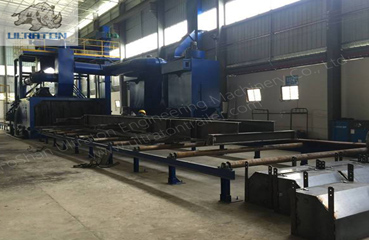

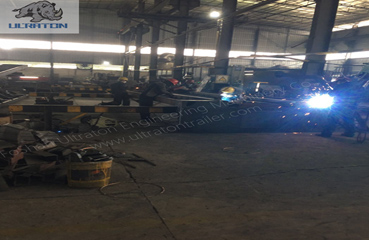

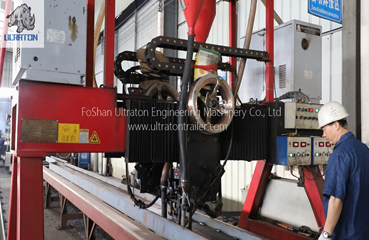

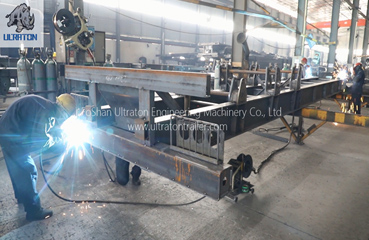

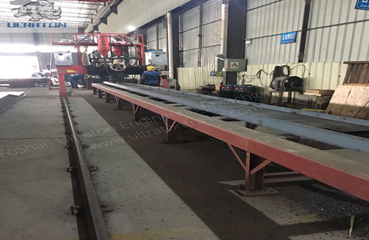

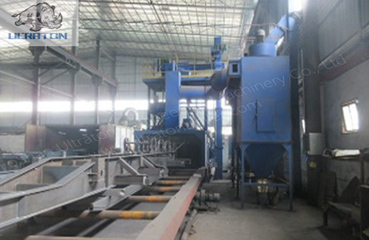

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust.
Cargo boxes can be optional for ordinary rectangle cargo boxes, U-shaped boxes, mining buckets, and separate rear door or multiple doors cargo boxes
Superior quality and famous brand we use on specific different trailer parts especially hydraulic cylinder. Details are outlined as below

Advantage of 3轴60吨半挂侧翻自卸车

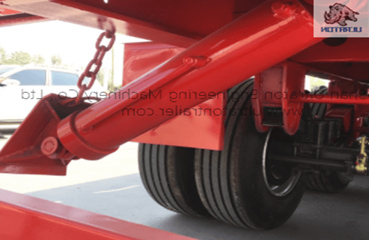

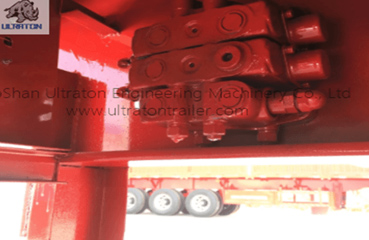

Different numbers and types of hydraulic cylinder is optional for solution
Unloading efficiency is greatly improved, the labor is saved, and the transportation cost is reduced
Shipped both by container, or RORO, bulk shipment
Nice and attractive appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

Technical Parameter	Semi Side Dump Trailer
Tare Weight(KG)	9000KG
Loading Capacity(KG)	60000KG

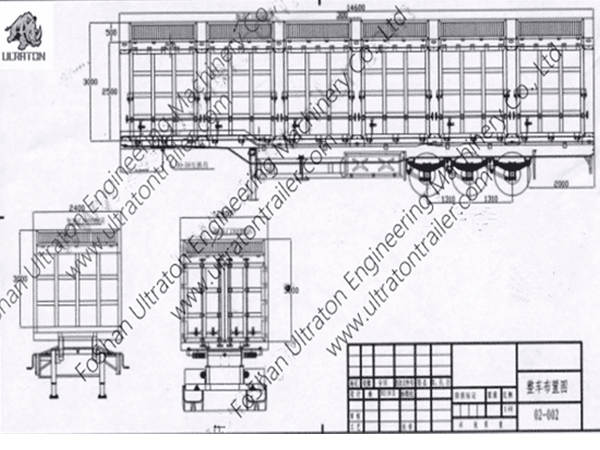

Dimension(mm)	1300025003400
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin	2''/ 3.5'',Welded/Bolt-In
Landing Gear	Standard 28Ton , FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand
Axle	Optional : BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand
Suspension	Optional : BPW Brand or HuaJing Brand
Leaf Spring	Standard FUWA Brand/BERTOIA Brand
Leaf Spring	90mm167 or 90168
Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Brake system	Emergency Valve,OPTIONS: ABS.
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,12 Units
Rim	9.0*22.5,12 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Shot Blasting & Painting	Two Coat Of Finish Painting
Mud Guard	Fabricated Mud Guard 6 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
Front Baffle	According To Customer’s Requirement
We Can Build The Trailer According To Customer’s Design And Requirement.
