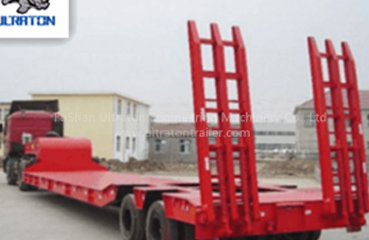

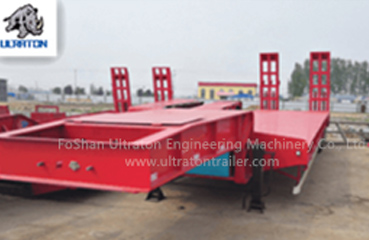

Overview of 40-60吨低平板半挂车

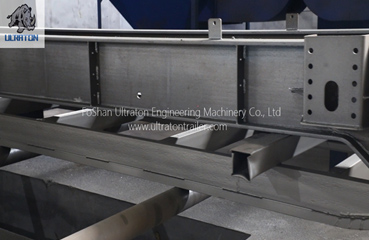

16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.
Flange and web width & thickness could be customized

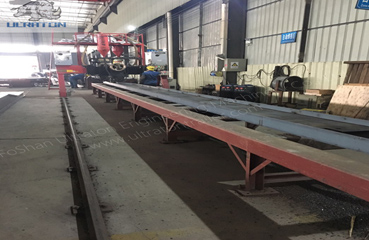

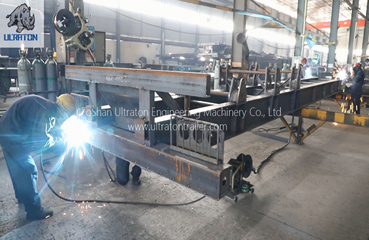

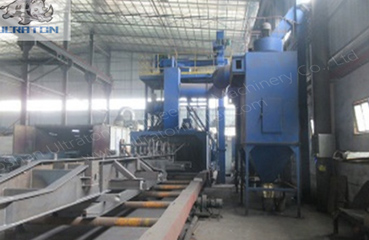

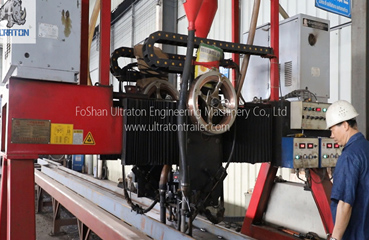

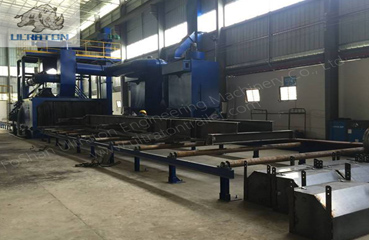

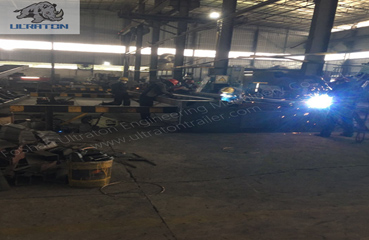

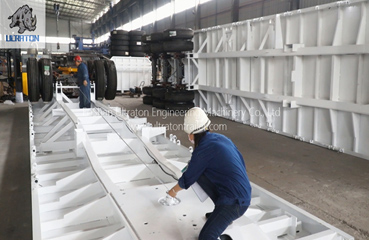

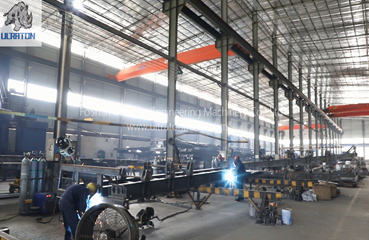

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress
Floor in 50mm thick hard wood or checker plate steel
Axles could be optional for German type or American type from 13T to 20T
Suspension is optional for mechanical suspension, air suspension or bogie suspension

Advantage of 40-60吨低平板半挂车

High tensile structure steel, robust and durable construction with high bending moment, high concentrated loading bearing capacity.
Scientific design with high strength to transport heavy duty goods
Efficient packing solution is available
Trailer parts as core components are of superior quality and complete service
Complete and flexible service from our professional team
Mature technology and unique resource ensure competitive cost
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

Technical Parameter	40-60 Ton Low Bed Semi Trailer
Tare Weight(KG)	8500KG
Loading Capacity(KG)	40000KG~60000KG

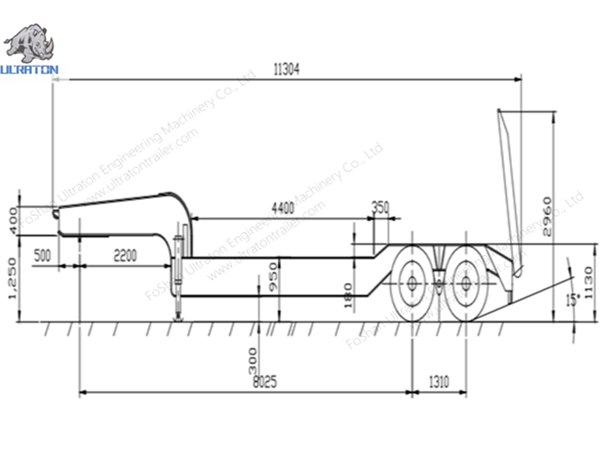

Dimension(mm)	1100030003000
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin	2'' / 3.5'' ,Welded/Bolt-In
Landing Gear	Standard 28Ton, FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension, Standard FUWA Brand/BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168

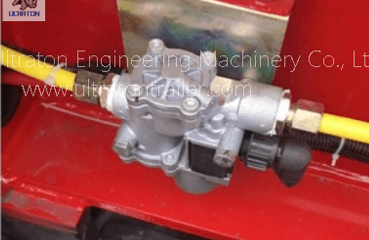

Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS.
Brake system
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.

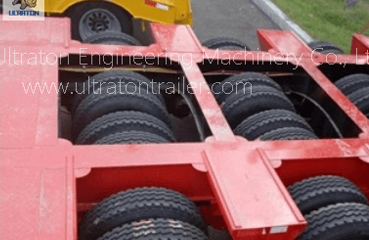

Tire	12.00R22.5 Tubeless,8 Units
Rim	9.0*22.5,8 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting
Shot Blasting & Painting
Mud Guard	Fabricated Mud Guard 4 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer's Design And Requirement.

Application of 40-60吨低平板半挂车

Ultraton's 40-60T Low Bed Semi Trailer could be used to handle heavy duty load, or normal dry cargo in different need for logistic companies and drivers
