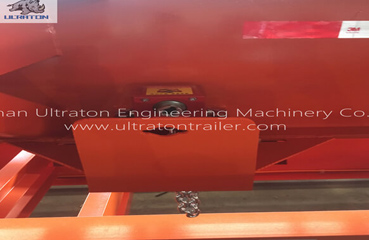

Overview of 3轴40英尺骨架式集装箱运输半挂卡车

Heavy duty and extra durability designed for main I beam
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345

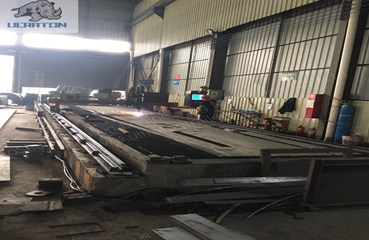

Specific auto hydraulic I beam straightening machine for more accuracy

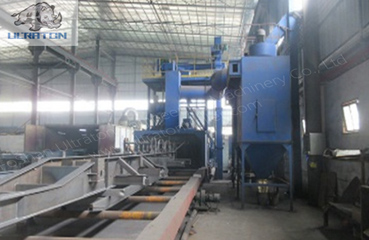

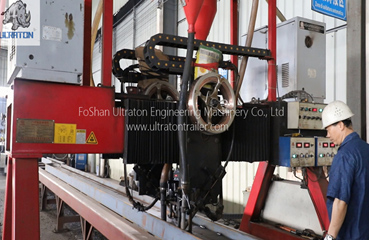

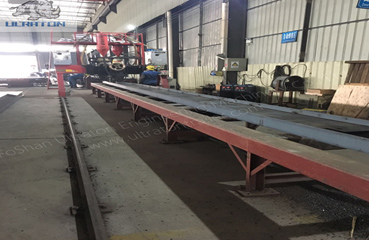

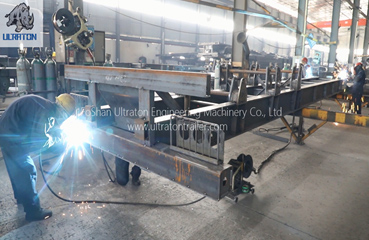

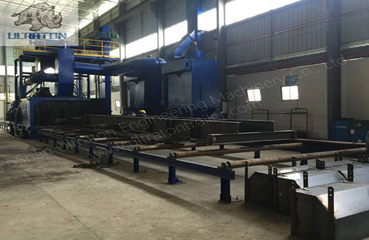

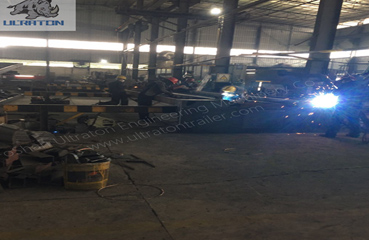

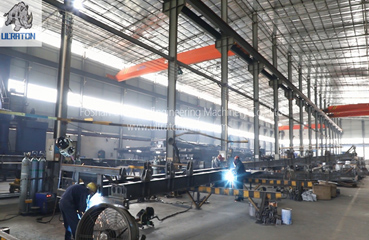

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

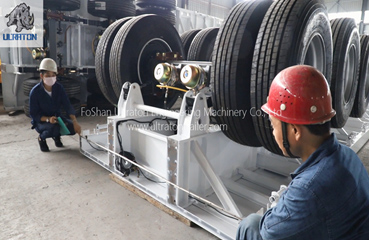

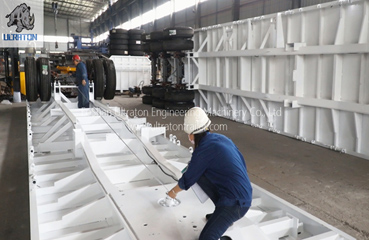

Assembled on air pressure assembly platform to ensure stable and durable structure
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below

Advantage of 3轴40英尺骨架式集装箱运输半挂卡车

Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Packing solution in CKD/ SKD/CBU is optional according to different project

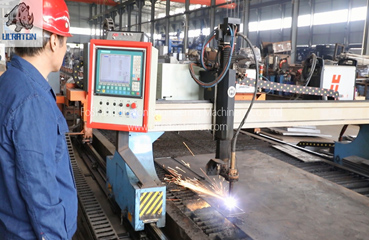

Advanced manufacturing equipment and workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

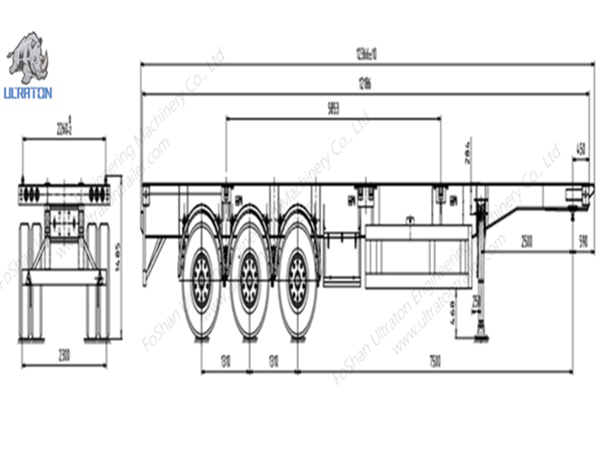

Technical Parameter	3 Axles 40ft Skeleton Container Transport Semi Truck Trailer
Tare Weight(KG)	5800KG
Loading Capacity(KG)	50000KG
Dimension(mm)	1240025001500
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin	2''/ 3.5'',Welded/Bolt-In
Landing Gear	Standard 28Ton , FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand
Axle	Optional : BPW Brand or HuaJing Brand

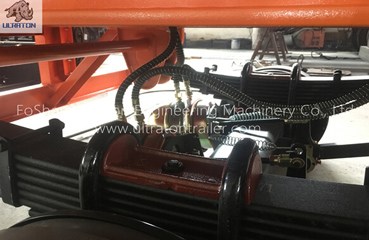

Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand
Suspension	Optional : BPW Brand or HuaJing Brand
Leaf Spring	Standard FUWA Brand/BERTOIA Brand
Leaf Spring	90mm167 or 90168
Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Brake system	Emergency Valve,OPTIONS: ABS.

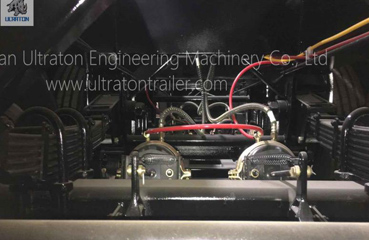

Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,12 Units
Rim	9.0*22.5,12 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Shot Blasting & Painting	Two Coat Of Finish Painting
Mud Guard	Fabricated Mud Guard 6 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Container Locks	4/8/12 Screw type
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer’s Design And Requirement.

Application of 3轴40英尺骨架式集装箱运输半挂卡车

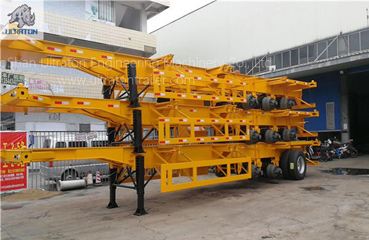

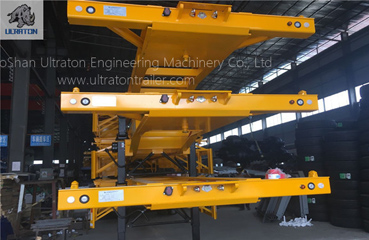

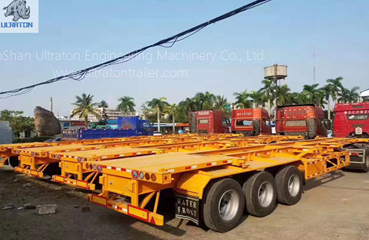

Ultraton's 3 axles 40ft Skeleton Semi Trailer could be used to transport standard sizes of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer

Other notes of 3轴40英尺骨架式集装箱运输半挂卡车

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

As one of the most professional 40ft trailer truck suppliers, we are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc..
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
