FS14 型悬挂可穿戴可更换系列
FS14 型可穿戴可替换式悬挂系列是一款欧洲设计的普通机械悬挂装置，通过 12 片钢板弹簧引导方向并减少冲击载荷与振动。
- Overview
- Advantage
- Application
- Other notes
Overview of FS14 型悬挂可穿戴可更换系列
Reliable Europe design for wearable quality.
Material of superior quality option for SUP9 or 60Si2Mn for leaf spring.
The grinding block is Q345/Q235 (or 20# cast steel) welded type.
A grease lubrication nozzle is on equilizer wear block.
Reasonable design on torsion bar with bushing made of polyurethane rubber.
Equipped with 12x100x12 leaf spring.
Design for 2 or 3 axles installation with 14ton each.
Applicable for both round beam trailer axle and square beam trailer axle.
Installation is applicable for overslung.
Advantage of FS14 型悬挂可穿戴可更换系列
Mature technology and reasonable design ensure good quality and competitive cost.
FS14 Type Suspension Wearable and Replaceable Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength.
The grinding block's angle is consistent with the direction in which the leaf spring is forced to expand.
Design of grease lubrication nozzle helps reduce sliding friction between the leaf spring and the equilizer wear block.
Simple structure makes easy maintenance.
Fast response and flexible service from our professional team.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

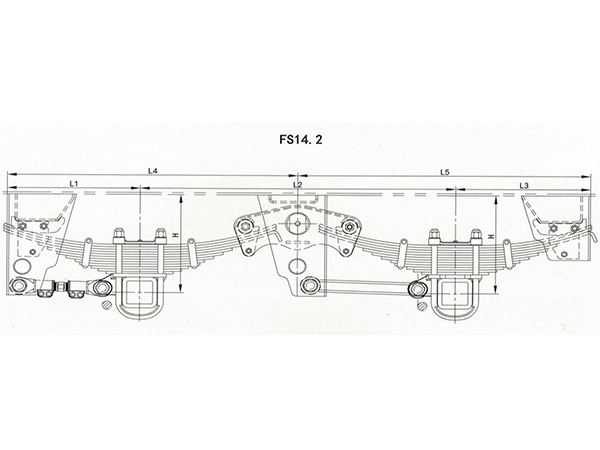

FS14.2AQ6 Tandem Suspension With Twelve Leaf Springs. Dimension:12*100*12 | |||||||
Model | H (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | Axle Load (KG) |
FS14.2/1360/475/AQ6/12 | 475 | 575 | 1360 | 585 | 1255 | 1265 | 14,000*2 |

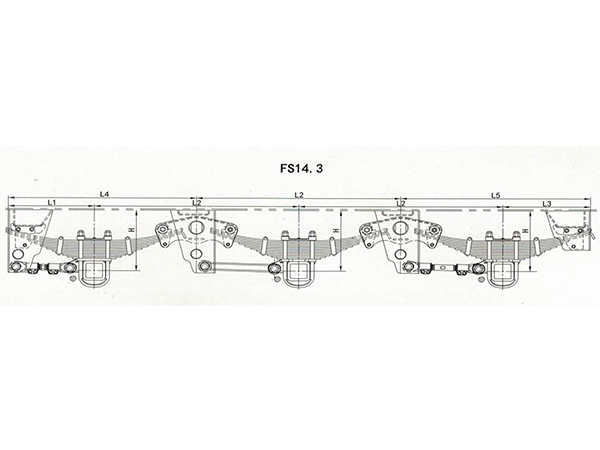

FS14.3AQ6 Tri Suspension With Twelve Leaf Springs. Dimension:12*100*12 | |||||||
Model | H (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | Axle Load (KG) |
FS14.3/1360/475/AQ6/12 | 475 | 575 | 1360 | 585 | 1255 | 1265 | 14,000*3 |
Note: (1) Dimension 'A':Unladen, Rated Laden'A*'=A-30 (2) Tightening Torque Torque Arm Pin Nuts: 850-950N.M. Torque Arm Pin Bolts: 120-140N.M. Equaliser Shaft Nuts: 1000-1100N.M. 'U' Bolts Nuts: 600-650N.M. Drop Out Bolts: 120-140N.M. Wearing Ring Torque Settings: 300-350N.M. | |||||||
Application of FS14 型悬挂可穿戴可更换系列
FS14 Type Suspension Wearable and Replaceable Series is applicable on any Ultraton Semi Trailer in need of Europe standard.
