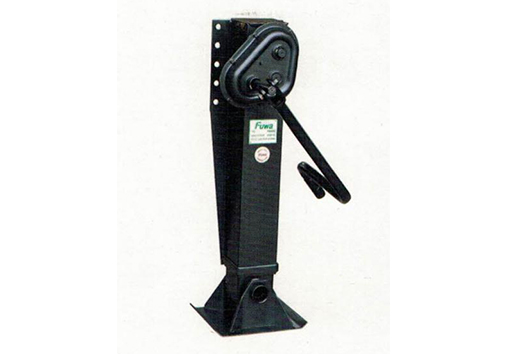

Overview of FW28 降落机构系列

Heavy duty and extra durability designed
Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
High gear and low gear is optional for different speed
Backing mounting plate is optional for greater load bearing capacity and extended life
Type A, G, S, R, T shoes available for different use
One side operation or two sides operation is optional with crank
Design of crank is optional
Meet Safety Regulations for commercial vehicles

Advantage of FW28 降落机构系列

Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of backing mounting plate and shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

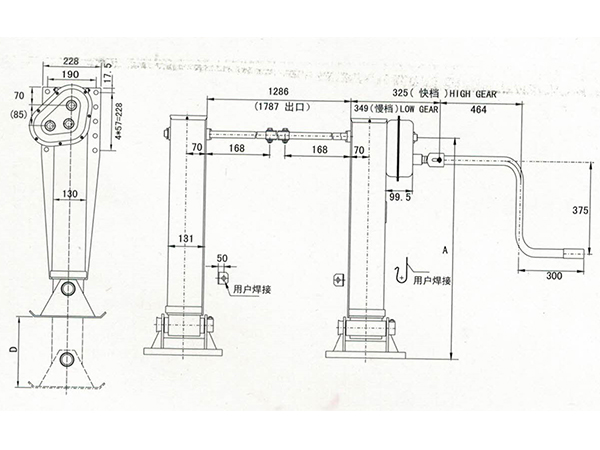

One Side Operation Landing Gear Assy
Model	Types Of Shoes	Lift D (mm)	Height A (mm)
FW280001A	A	430	814
FW280001G	G	430	770
FW280001R	R	430	797
FW280001S	S	430	822
FW280001T	T	430	794
FW280002A	A	480	864
FW280002G	G	480	820
FW280002R	R	480	847
FW280002S	S	480	872
FW280002T	T	480	844
Both Geared Landing Gear Assy
FW280011A	A	430	814
FW280011G	G	430	770
FW280011R	R	430	797
FW280011S	S	430	822
FW280011T	T	430	794
FW280022A	A	480	864
FW280022G	G	480	820
FW280022R	R	480	847
FW280022S	S	480	872
FW280022T	T	480	844
Standard Specifications
Capacity 28,000KG/Pair
Static Load 80,000KG/Pair
Weight 98KG
Crank Force
Low Gear 0.71mm Per Turn(mm/r) Of Handle
High Gear 5.40mm Per Turn(mm/r) Of Handle
One Side Operation Crank Force 28T-35KG
Two Side Operation Crank Force 28T-17KG

FW28 Landing Gear Series is applicable on any Ultraton Semi Trailer
