Overview of FW86 高强度悬挂系列

Heavy duty and extra durability designed in comply with National Standard and ADR
Superior quality material SUP9 or 60Si2Mn optional on leaf spring
Typical structure consists of elastic elements, shock absorbers, and guiding mechanisms serve as buffering, damping and force transmission
Equipped with 9x90x16 leaf spring
Design for 2 or 3 axles installation with 16ton each
Applicable for square beam trailer axle for heavy duty purpose
Installation is applicable for overslung

Advantage of FW86 高强度悬挂系列

Mature technology and reasonable design ensure good quality and competitive cost
FW86 Type Heavy Duty Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength
The grinding block' angle is consistent with the direction in which the leaf spring is forced to expand.
Design of grease lubrication nozzle helps reduce sliding friction between the leaf spring and the equilizer wear block
Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.
Simple structure makes easy maintenance
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

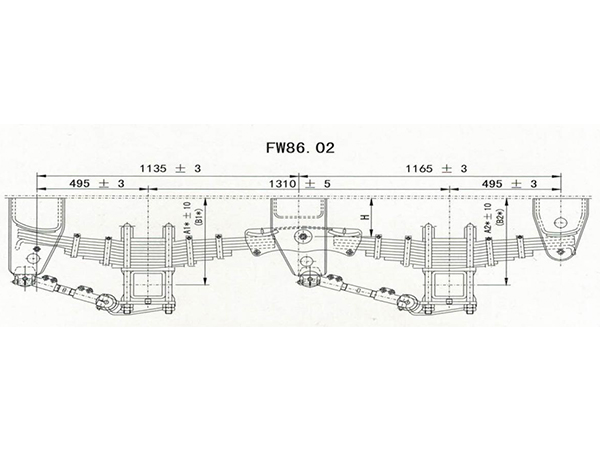

FW86.02 Tandem Suspension With Nine Leaf Springs. Dimension:99016
Model	Height Of Towing Plate(mm）			A1(mm)	B1(mm))	A2(mm)	B2(mm)	H(mm)	Axle Load(KG)
FW860201A	1180			473	443	465	435	183	16,000*2
FW860202A	1220			513	483	505	475	223	16,000*2
FW860203A	1250			543	513	535	505	253	16,000*2
FW860201B	1180			454	424	446	416	164	16,000*2
FW860202B	1220			494	464	484	456	204	16,000*2
FW860203B	1250			526	496	518	488	234	16,000*2

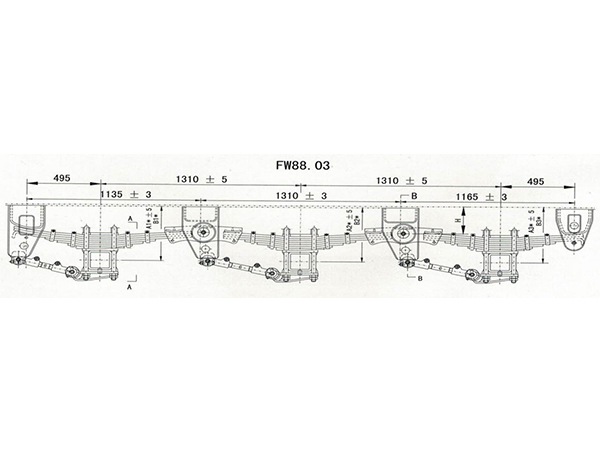

FW86.03 Tri Suspension With Nine Leaf Springs. Dimension:99016
Model	Height Of Towing Plate (mm)	A1(mm)	B1(mm)	A2(mm)	B2(mm)	A3(mm)	B3(mm)	H(mm)	Axle Load(KG)
FW860301A	1180	489	459	480	450	467	437	183	16,000*3
FW860302A	1220	529	499	520	490	507	477	223	16,000*3
FW860303A	1250	559	529	550	520	537	507	253	16,000*3
FW860301B	1180	470	440	461	431	448	418	164	16,000*3
FW860302B	1220	510	480	501	471	488	458	204	16,000*3
FW860303B	1250	540	510	531	501	518	488	234	16,000*3
Note: (1)Dimension ‘A’: Unladen (2) Dimension ‘B’: Rated Laden(For Reference Only) (3) ‘U’ Bolt Nuts’ Tightening Torque: 600N.M.-650N.M. (4) Nut Torque Of Rocker Shaft:350N.M.-400N.M. (5) Torque Of Tighter Bolts For Harper And Rods: 120N.M.-160N.M. (6) Torque Of Springs Bolts: 110N.M.-120N.M. (7) Suitable For Round/Square Axles (8) Spring Quantity Is Optional
