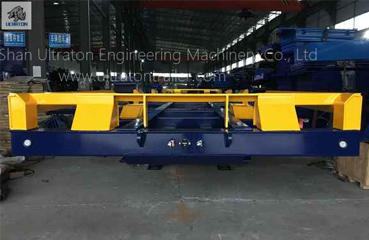

Overview of 30吨码头港口集装箱运输半挂车

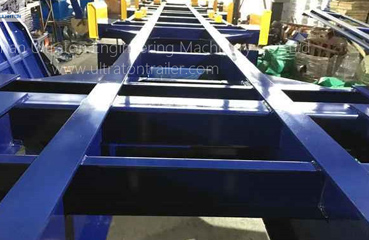

Heavy duty and extra durability designed for main I beam
Flange and web width & thickness could be customized

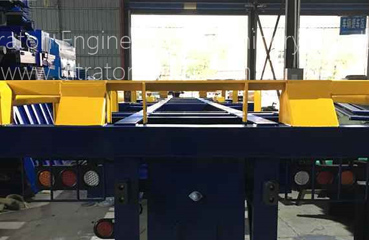

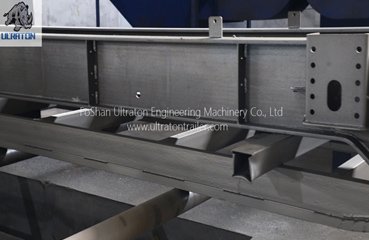

Guide block, bottom block and indicated bar is appropriately welded to fix containers firm and fast
Steel material we use is high strength low alloy steel Q345

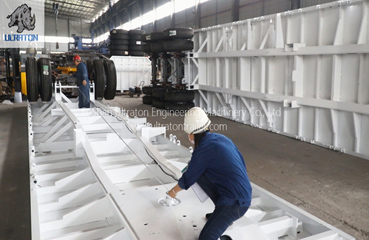

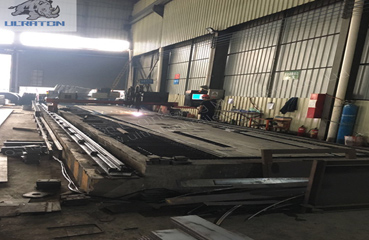

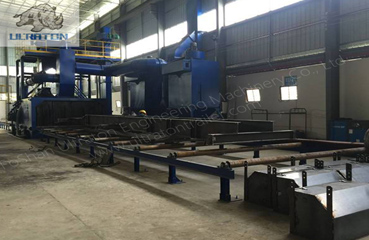

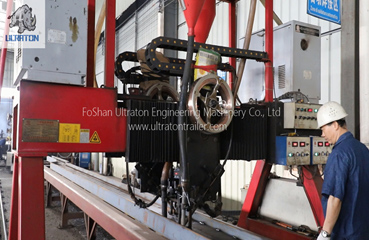

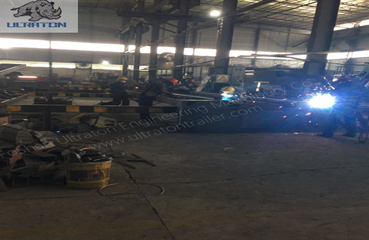

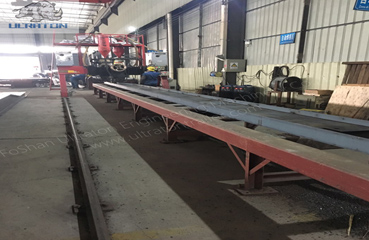

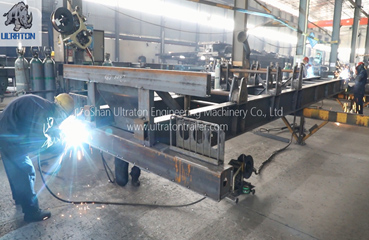

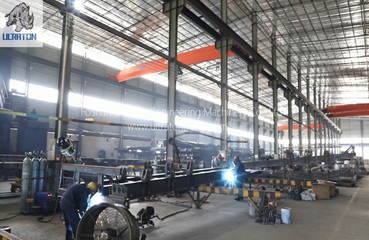

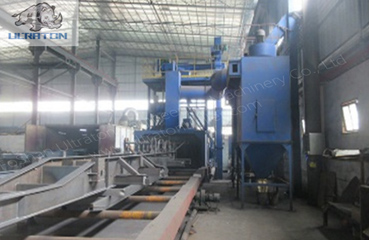

Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below

Advantage of 30吨码头港口集装箱运输半挂车

Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment
Nice and attractive appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

Technical Parameter	30T Terminal Port Container Truck Semi Trailer
Tare Weight(KG)	5700KG
Loading Capacity(KG)	30000KG

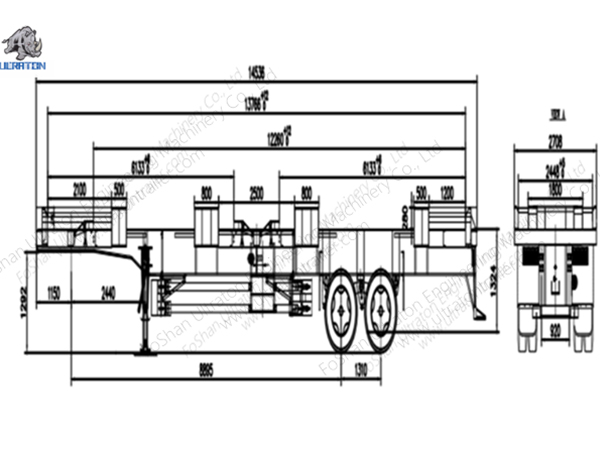

Dimension(mm)	1395025002760
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin	2''/ 3.5'',Welded/Bolt-In

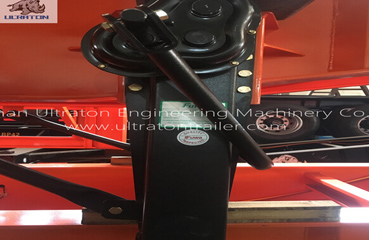

Landing Gear	Standard 28Ton , FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand
Axle	Optional : BPW Brand or HuaJing Brand

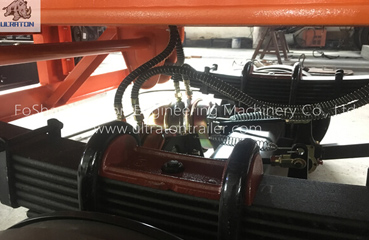

Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand
Suspension	Optional : BPW Brand or HuaJing Brand
Leaf Spring	Standard FUWA Brand/BERTOIA Brand
Leaf Spring	90mm167 or 90168
Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Brake system	Emergency Valve,OPTIONS: ABS.
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,8 Units
Rim	9.0*22.5,8 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Shot Blasting & Painting	Two Coat Of Finish Painting
Mud Guard	Fabricated Mud Guard 4 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
Flapper	According To Customer’s Requirement
Guide Block	According To Customer’s Requirement
We Can Build The Trailer According To Customer’s Design And Requirement.

Application of 30吨码头港口集装箱运输半挂车

Ultraton's 30T Enclosed Semi Trailer is one kind of modified Skeleton Semi Trailer which is specifically worked in terminal port for load and lifting containers precisely and quickly. Especially suitable for terminal ports, shipping lines.
