FW86 型重载下置式悬挂系列
FW86 型重载下悬式悬架系列是一种广泛适用的普通机械悬架，通过 9 片加宽的重载钢板弹簧实现导向并减少冲击载荷和振动，采用下悬式安装设计。
- Overview
- Advantage
- Application
- Other notes
Overview of FW86 型重载下置式悬挂系列
Heavy duty and extra durability designed in comply with National Standard and ADR
Superior quality material SUP9 or 60Si2Mn optional on leaf spring
Typical structure consists of elastic elements, shock absorbers, and guiding mechanisms serve as buffering, damping and force transmission
Equipped with 9x90x16 leaf spring
Design for 2 or 3 axles installation with 16ton each
Applicable for square beam trailer axle for heavy duty purpose
Standard axle spacing available with 1310mm.
Installation is applicable for underslung
Advantage of FW86 型重载下置式悬挂系列
Mature technology and reasonable design ensure good quality and competitive cost
FW86 Type Heavy Duty Underslung Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength
Reduce or eliminate the impact and vibration transmitted to the frame by the uneven road through the axle to improve the ride comfort of the semi-trailer.
The verticality of the axle and the traction pin can be ensured, and the eccentric wear and abortion of the trailer tire can be effectively eliminated.
Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.
Simple structure makes easy maintenance
Underslung installation can help lower center of gravity for stronger loading capacity
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

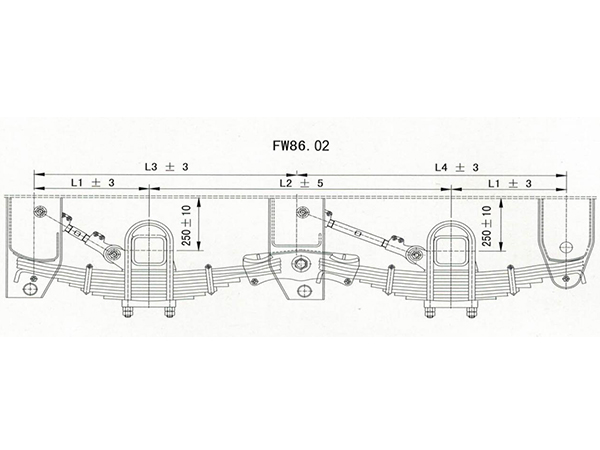

FW86.21/250/BQ6/9 Tandem Underslung Suspension With Nine Leaf Springs(Axle Spacing: 1310). Dimension:9*90*16 | |||||
Model | L1(mm) | L2(mm) | L3(mm) | L4(mm) | Axle Load (KG) |
FW86.2/1310/250/BQ6/9 | 495 | 1310 | 1135 | 1165 | 16,000*2 |
FW86.2/1360/250/BQ6/9 | 495 | 1360 | 1160 | 1190 | 16,000*2 |

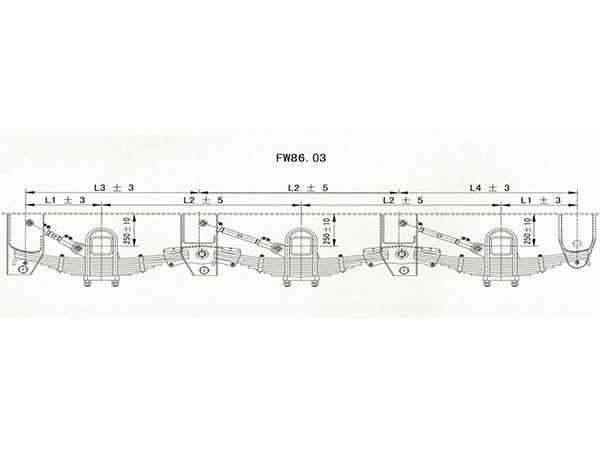

FW86.31/250/BQ6/9 Tri Underslung Suspension With Nine Leaf Springs (Axle Spacing: 1310). Dimension:9*90*16 | |||||
Model | L1(mm) | L2(mm) | L3(mm) | L4(mm) | Axle load(KG) |
FW86.3/1310/250/BQ6/9 | 495 | 1310 | 1135 | 1165 | 16,000*3 |
FW86.3/1360/250/BQ6/9 | 495 | 1360 | 1160 | 1190 | 16,000*3 |
Application of FW86 型重载下置式悬挂系列
FW86 Type Heavy Duty Underslung Suspension Series is widely applicable on any Ultraton Semi Trailer in lower center of gravity
