Overview of FW31 着陆架系列

Heavy duty and extra durability designed
Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
High gear and low gear is optional for different speed
Backing mounting plate is optional for greater load bearing capacity and extended life
Type A, G, S, R, T ,C shoes available for different use
One side operation with crank
Design of crank is optional
Meet Safety Regulations for commercial vehicles

Advantage of FW31 着陆架系列

Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

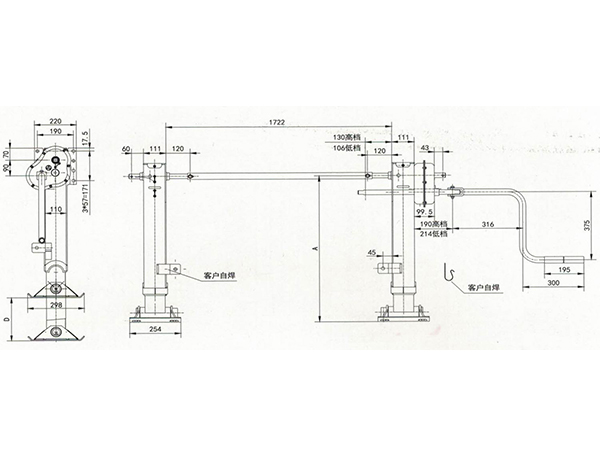

One Side Operation Landing Gear Assy
Model	Types Of Shoes	Lift D (mm)	Height A (mm)
FW3114C	C	360	621
FW3114A	A	360	712
FW3114G	G	360	668
FW3114R	R	360	695
FW3114S	S	360	720
FW3114T	T	360	692
FW3114LT	LT	360	631
FW3117C	C	430	691
FW3117A	A	430	782
FW3117G	G	430	738
FW3117R	R	430	765
FW3117S	S	430	790
FW3117T	T	430	762
FW3117LT	LT	430	701
FW3119C	C	480	741
FW3119A	A	480	832
FW3119G	G	480	788
FW3119R	R	480	815
FW3119S	S	480	840
FW3119T	T	480	812
FW3119LT	LT	480	751
Standard Specifications Capacity 25,000KG/Pair Static Load 60,000KG/Pair Weight 100KG Crank Force Low Gear 1.0mm Per Turn(mm/r) Of Handle High Gear 7.5mm Per Turn(mm/r) Of Handle One Side Operation Crank Force 25T-33.5KG

FW31 Landing Gear Series is applicable on any Ultraton Semi Trailer.
