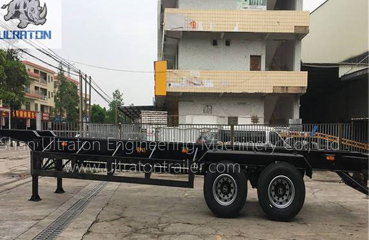

Overview of 2轴20英尺骨架集装箱运输半挂车

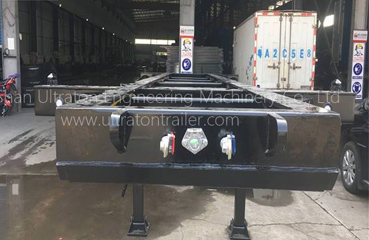

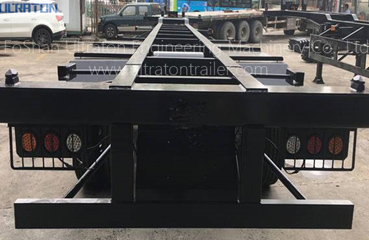

The frame is designed as a space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel).
Design parameters strictly conform to National Safety Standard.
Steel material we use is high strength low alloy steel Q345.

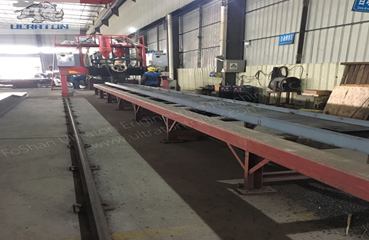

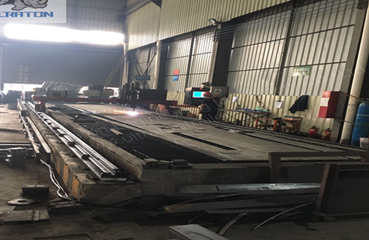

Specific auto hydraulic I beam straightening machine for more accuracy

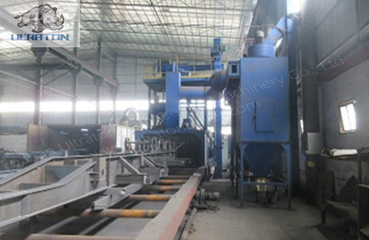

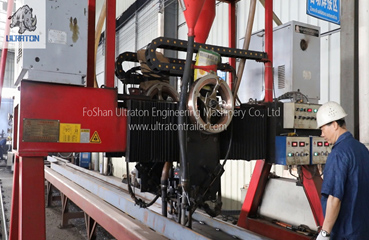

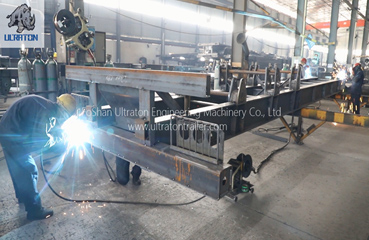

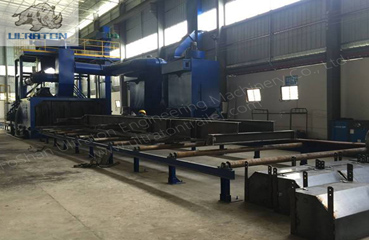

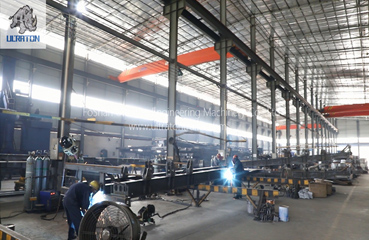

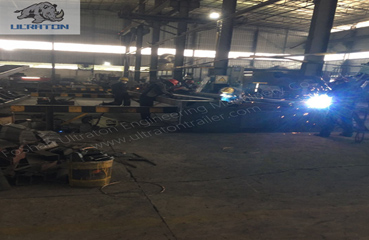

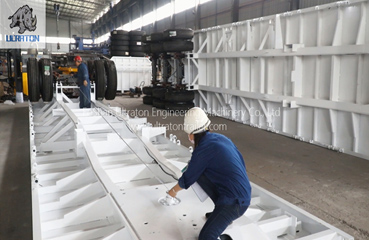

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

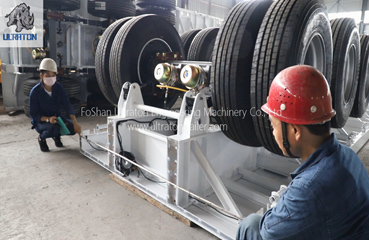

Assembled on air pressure assembly platform to ensure stable and durable structure
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.

Advantage of 2轴20英尺骨架集装箱运输半挂车

Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment.
Perfect appearance with our good workmanship
Complete response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service


Technical Parameter	2 Axles 20ft Skeleton Container Transport Semi Truck Trailer
Tare Weight(KG)	3500KG
Loading Capacity(KG)	40000KG

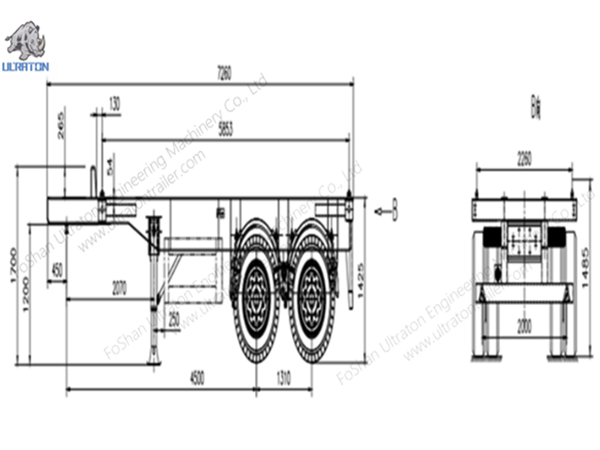

Dimension(mm)	720024801500
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin	2''/ 3.5'',Welded/Bolt-In
Landing Gear	Standard 28Ton , FUWA Brand

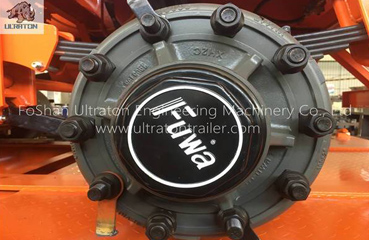

Axle	Standard FUWA Brand / BERTOIA Brand
Axle	Optional : BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand
Suspension	Optional : BPW Brand or HuaJing Brand
Leaf Spring	Standard FUWA Brand/BERTOIA Brand
Leaf Spring	90mm167 or 90168

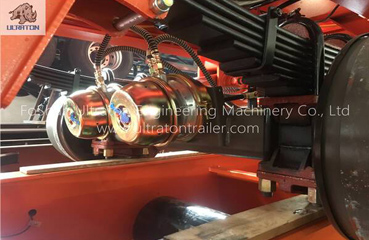

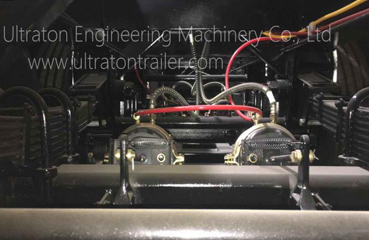

Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Brake system	Emergency Valve,OPTIONS: ABS.
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,8 Units
Rim	9.0*22.5,8 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Shot Blasting & Painting	Two Coat Of Finish Painting
Mud Guard	Fabricated Mud Guard 4 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Container Locks	4/8/12 Screw type
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer’s Design And Requirement.

Application of 2轴20英尺骨架集装箱运输半挂车

Ultraton's 2 Axles 20ft skel trailer could be used to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
