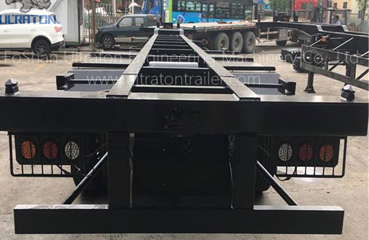

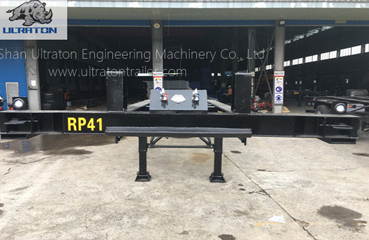

Overview of 3轴20英尺骨架集装箱运输半挂车

Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements
Flange and web width & thickness could be customized
16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.

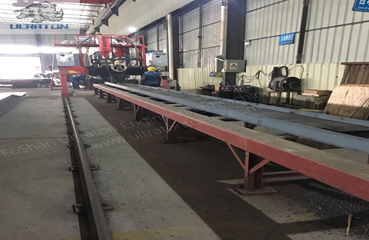

Specific auto hydraulic I beam straightening machine for more accuracy

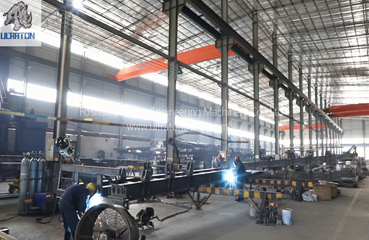

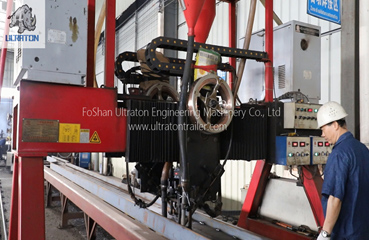

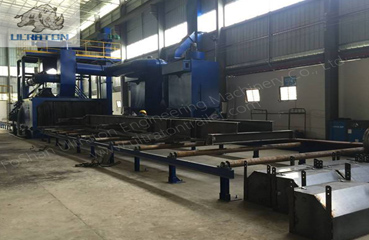

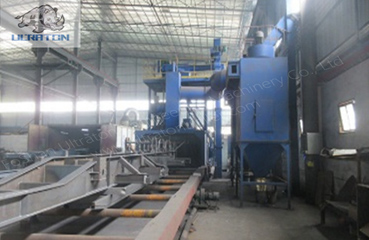

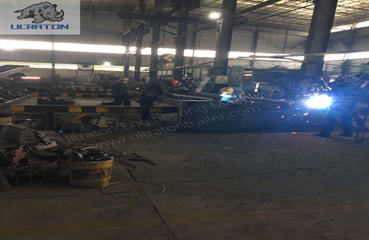

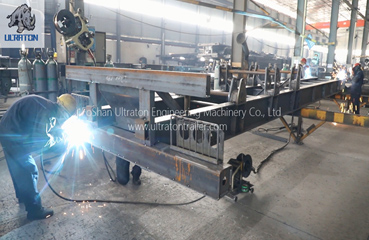

Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust.
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.

Advantage of 3轴20英尺骨架集装箱运输半挂车

Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment
Nice and attractive appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

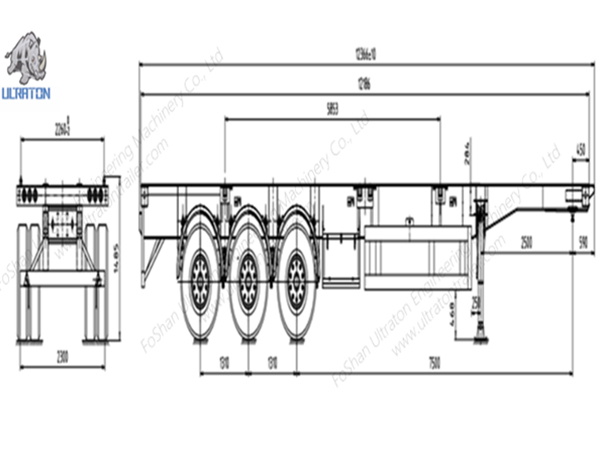

Technical Parameter	3 Axles 20ft Skeleton Container Transport Semi Truck Trailer
Tare Weight(KG)	5000KG
Loading Capacity(KG)	40000KG
Dimension(mm)	850025001500
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin	2''/ 3.5'',Welded/Bolt-In

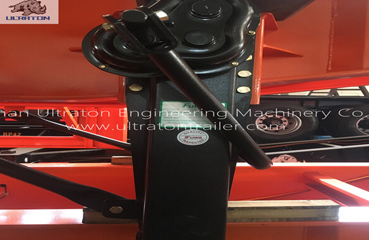

Landing Gear	Standard 28Ton , FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand
Axle	Optional : BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand
Suspension	Optional : BPW Brand or HuaJing Brand
Leaf Spring	Standard FUWA Brand/BERTOIA Brand
Leaf Spring	90mm167 or 90168
Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Brake system	Emergency Valve,OPTIONS: ABS.
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,12 Units
Rim	9.0*22.5,12 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Shot Blasting & Painting	Two Coat Of Finish Painting
Mud Guard	Fabricated Mud Guard 6 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Container Locks	4/8/12 Screw type
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer’s Design And Requirement.

Application of 3轴20英尺骨架集装箱运输半挂车

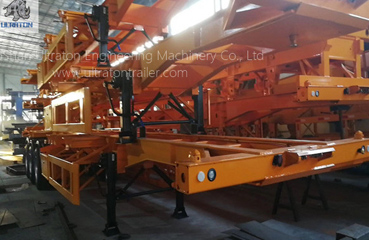

Ultraton's 20ft tri axle skeletal trailer could be used to transport standard sizes of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer

Other notes of 3轴20英尺骨架集装箱运输半挂车

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange
Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc..
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
