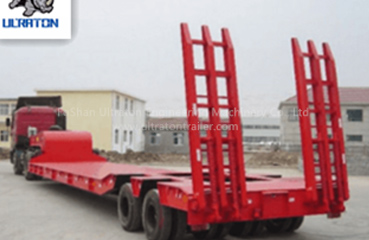

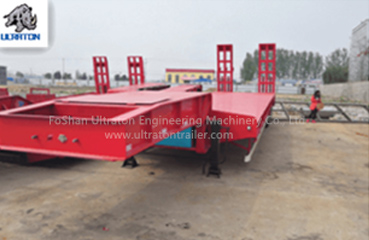

Overview of 60-150吨低平板半挂车

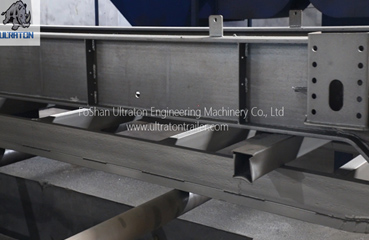

Heavy duty and extra durability designed for concave beam.
Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements
Steel material we use is high strength steel Q345.

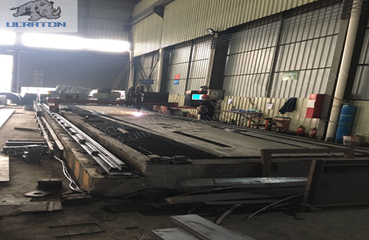

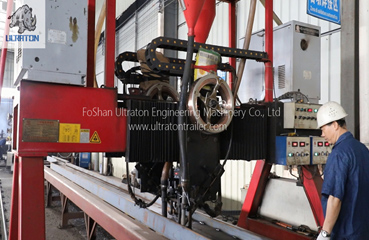

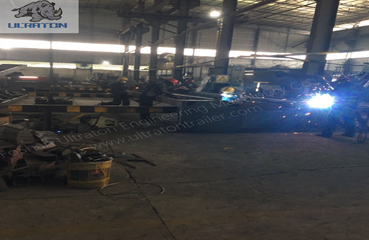

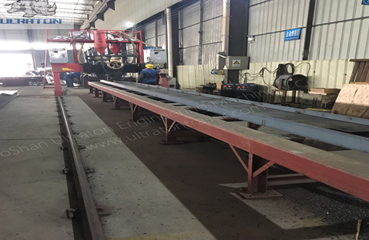

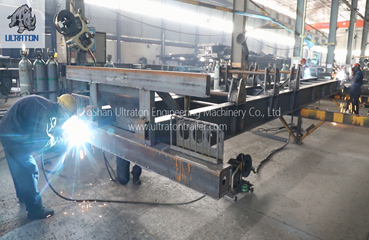

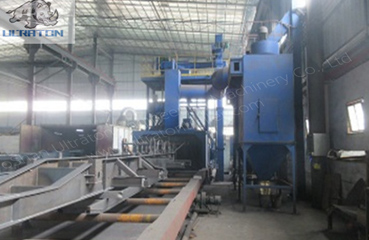

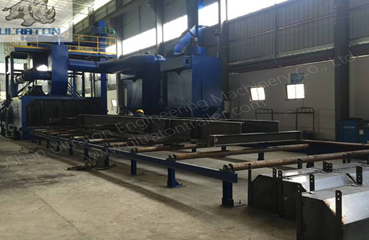

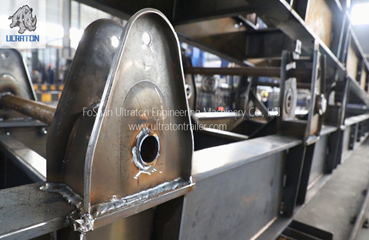

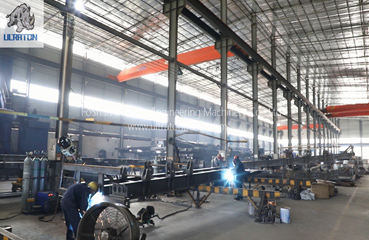

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

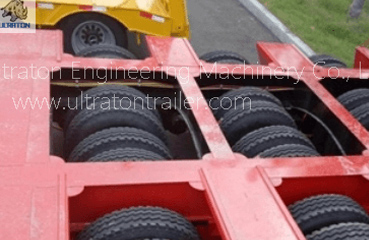

Axles could be optional for hydraulic pendulum axle;
Suspension could be optional for cantilever suspension
Extendable ramp is optional

Advantage of 60-150吨低平板半挂车

High tensile structure steel, robust and durable construction with high bending moment, high concentrated loading bearing capacity.
Practical design with high strength to transport heavy duty goods
Packing solution in CKD/ SKD/CBU is optional according to different project.

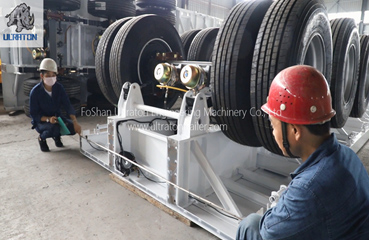

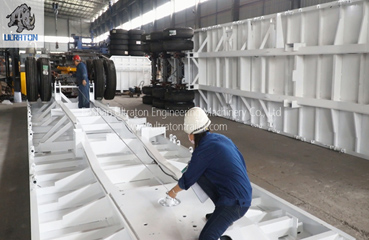

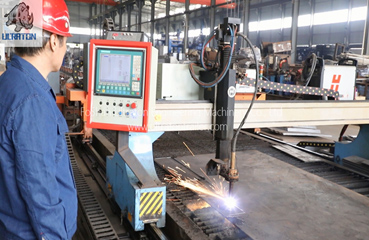

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

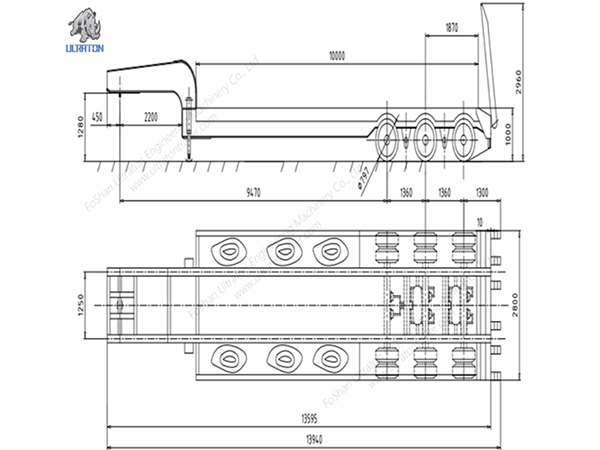

Technical Parameter	60-150 Ton Low Bed Semi Trailer
Tare Weight(KG)	9500KG
Loading Capacity(KG)	60000KG~150000KG
Dimension(mm)	1300025003000
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin	2'' / 3.5'' ,Welded/Bolt-In
Landing Gear	Standard 28Ton, FUWA Brand
Axle	Standard FUWA Brand / BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension, Standard FUWA Brand/BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168

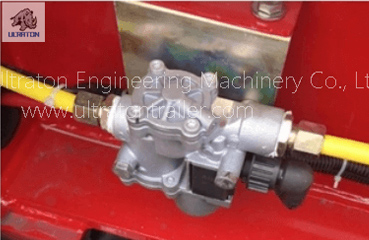

Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS.
Brake system
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,12 Units
Rim	9.0*22.5,12 Units
Shot Blasting & Painting	Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting
Shot Blasting & Painting
Mud Guard	Fabricated Mud Guard 6 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer's Design And Requirement.

Application of 60-150吨低平板半挂车

Ultraton's 60-150T Low Bed Semi Trailer could be used to handle heavy duty load, especially transport tractors, buses, special purpose vehicles, rail vehicles, mining machinery, forestry machinery, military machinery and other heavily loaded goods.
