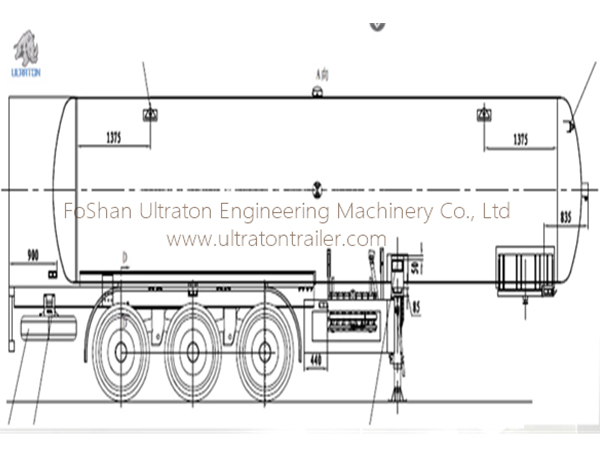

Overview of 40立方米半挂液罐车

Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements.
Thickness of top plate, side plate and bottom plate of tank barrel could be customized.
Applicable tank barrel material: carbon steel, stainless steel, aluminum alloy, glass reinforced plastic etc.
Optional for one or more compartments.
All tank fittings are strictly selected domestic famous brand for filling and unloading system and safety protection system.
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.

Advantage of 40立方米半挂液罐车

Different shape and material of tank is optional for solution
All design is strictly in comply with safety technical condition
Efficient packing solution is available
Trailer parts as core components are of superior quality and complete service
Complete and flexible service from our professional team
Mature technology and unique resource ensure competitive cost
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service


Technical Parameter	40m³Tanker Semi Trailer

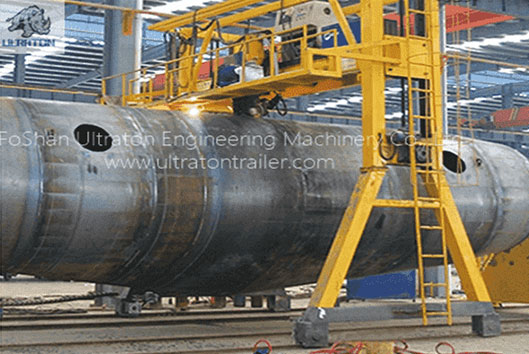

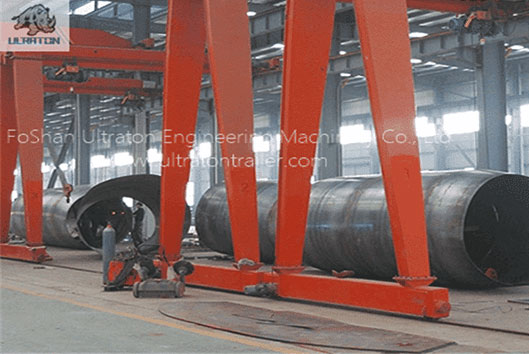

TANK BARREL
Tank Profile	Elliptical, Straight, Maximum profile design that maximizes volumetric capacity whilst achieving a low centre of gravity.
Design Code/Testing	According to china standard，refer to ADR Standard. Hydrostatic test to 5 psi (35 Kpa) on each compartment

Capacity	40000L plus maximum 5% Ullage.

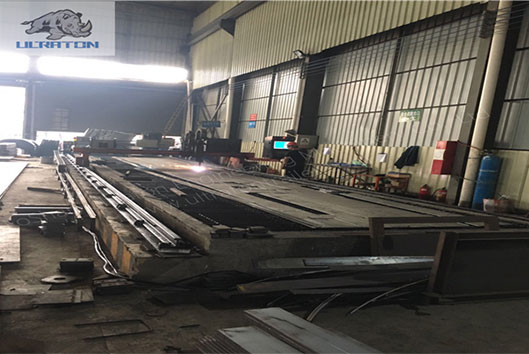

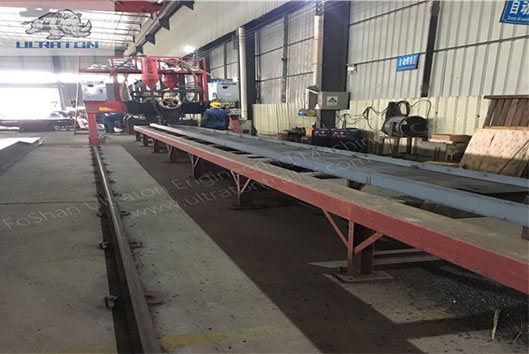

Main Beam	Carbon stee Extrusion , full-length main frame.
Roll Over Coaming	Carbon steel Extrusion in inverted “U” section, for roll over protection. At least 30mm above any fittings on the top of the barrel, 3/8” degassing plug at the front-top & rear-bottom.

FITTINGS AND PIPING

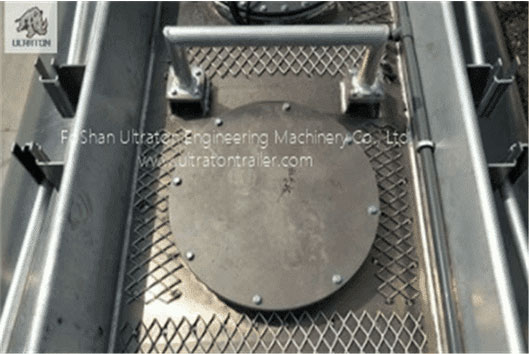

Manhole Cover	Domestic manhole cover, with relief valve（top inlet for oil）， Pressure Vacuum Vent, overfill hole and vapour transfer vent hole ( *5)
Pressure Vacuum Vent	Domestic, roll-over type incorporates with manhole cover (*5)
Vapour Vent	Domestic， sequential pneumatic control air vent (*5)
Vapour Recovery Hose	3” hose, connected with vepour vent to the left side coaming rail, Stainless steel hose clips as need.
Vapour Recovery Piping	4” Carbon steel pipe from rear right side roll over coaming to rear of the barrel, outside of the barrel, connected with vapour recovery adaptor.
Vapour Recovery Adaptor	Domestic with pneumatic vapour interlock valve and dust cap, install at rear right side of the barrel. (*1)
Vapour Dump Vent	Domestic, air operated, dump vent close when the vapour adaptor is activated, installed at the rear right inner side of roll over coaming, vented to atmosphere. (*1)
Emergency Valve	pneumatic controlled emergency valve at all compartments, flange coupling to discharge pipe (*5)
Discharge Piping	4” Carbon steel discharge pipe to the right side of trailer with minimum number of bends. Piping to be hydro-statically tested. The piping slope toward front at angle of 2-3 degrees.

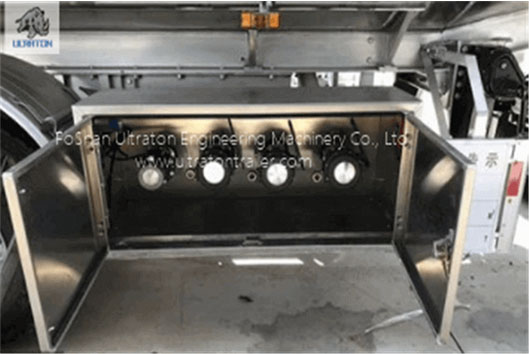

Loading & Discharge Valve	DN 80 du type FIDLOCK aptor c/w flange type sight glass & dust cap on the right side at centre of tanker. The offset distance from centre to centre of API is 300mm. (*5)
Overfill Prevention	Civacon 5 wire optic probe installed to manhole cover, 1 piece Civacon 10 pin, 3J slot plug socket installed above the discharge control cabinet. (*5) Probe need to be set at minimum 25mm above top full ullage marker in each compartment.

RUNNING GEAR
Landing Gear	Standard 28Ton , FUWA Brand

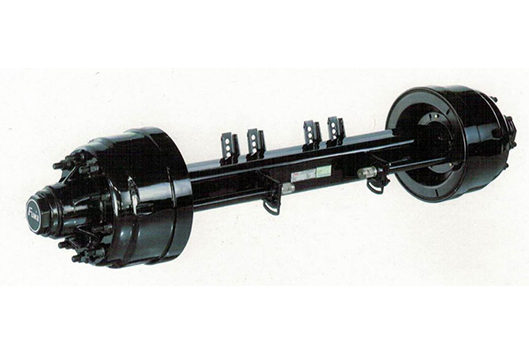

Axle	Standard FUWA Brand / BERTOIA Brand Optional : BPW Brand or HuaJing Brand

Suspension	Mechanical Suspension/Air Suspension,Standard FUWA Brand/BERTOIA Brand Optional : BPW Brand or HuaJing Brand

Tire	12.00R22.5 Tubeless
Rim	9.0*22.5

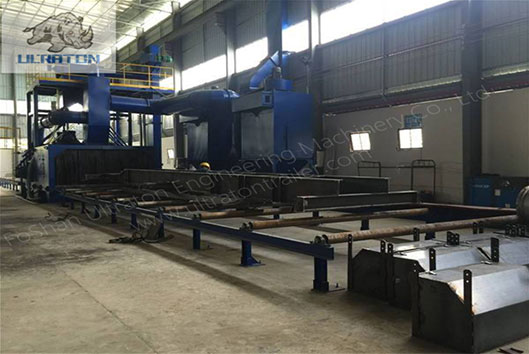

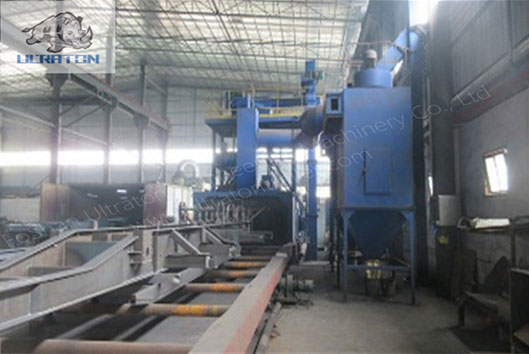

Shot Blasting & Painting	Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting

Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
We Can Build The Trailer According To Customer’s Design And Requirement.
