Overview of 悬挂系统

Heavy duty and extra durability designed for hangers, equalizer, connecting rod, guide arm in comply with National Standard
Flexible options on elastic operation by leaf spring or air bag
Superior quality material SUP9 or 60Si2Mn optional on leaf spring
The thickness, width and numbers of leaf spring could be optional
Applicable on American type axle, German type axle, Disc brake axle, Spoke wheel axle etc.
Installation is applicable for overslung and underslung

Air Suspension Series

Air Suspension Series

Bogie Suspension Series

Bogie Suspension Series

Mechanical Suspension Series

Mechanical Suspension Series

Advantage of 悬挂系统

1. Mature technology, it could be produced in large quantity at a competitive cost

2. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

3. Advanced workmanship and skilled technician team ensure the strength of single bracket welded by reinforced steel plates

4. Simple structure makes easy maintenance

5. Distinct location to get full range support on delivery and manufacturing

6. Fast response and flexible service from our professional team

7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry-free on after-sales service

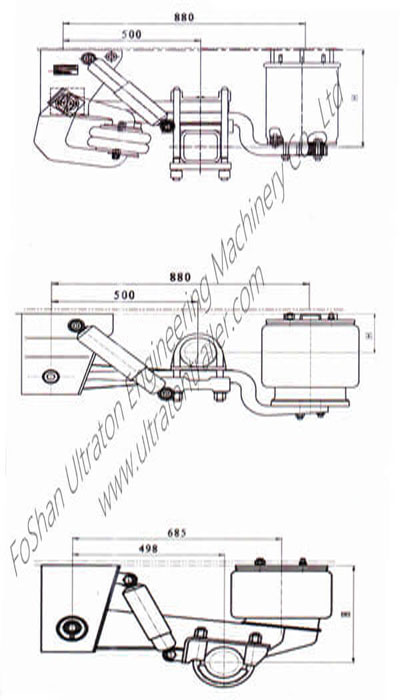

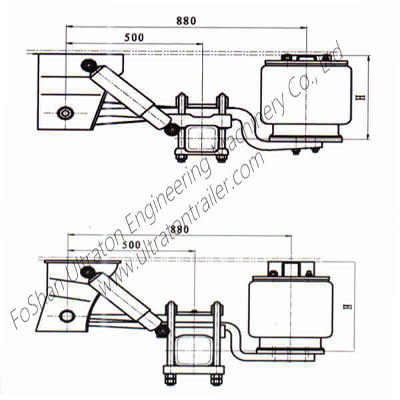

Air Suspension Series

German Type Over Slung Air Suspension Series
Model	H (mm)	Capacity (T)	Note
UGAAAA09/365/AQ5	365	9	Optional Lifting / Round Axle / Square Axle Is Available
UGAAAA09/390/AQ5	390	9
UGAAAA09/415/AQ5	415	9
UGAAAA09/440/AQ5	440	9
UGAAAA09/465/AQ5	465	9
UGAAA11/365/AQ5	365	11
UGAAA11/390/AQ5	390	11
UGAAA11/415/AQ5	415	11
UGAAA13/440/AQ5	440	13
UGAAA13/465/AQ6	465	13
UGAAA13/490/AQ7	490	13
UGAT1105/450/AQ5	450	11
UGAT1105/475/AQ5	475	11
UGAT1105/500/AQ5	500	11
UGAT1105/525/AQ5	525	11
UMAAA09/365/AR6	365	9
UMAAA09/390/AR6	390	9
UMAAA09/415/AR6	415	9
UMAAA09/440/AR6	440	9
Air Suspension Series (Underslung)
Model	H (mm)	Capacity (T)	Note
UGABA09/160/BR5	160	9	Optional Lifting / Round Axle / Square Axle Is Available
UGABA09/185/BR6	185	9
UGABA11/210/BR7	210	11
UGABA11/235/BR8	235	11
UGABA13/160/BR5	160	13
UGABA13/185/BR6	185	13

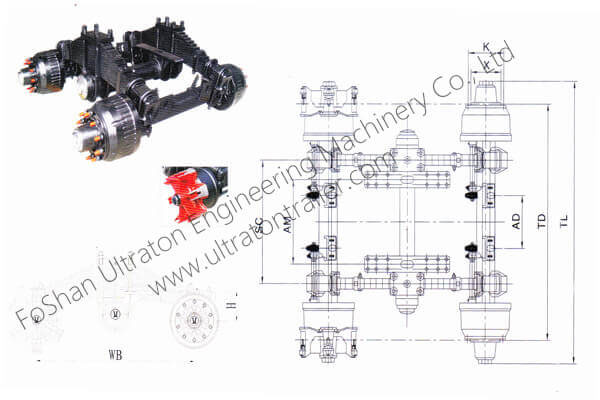

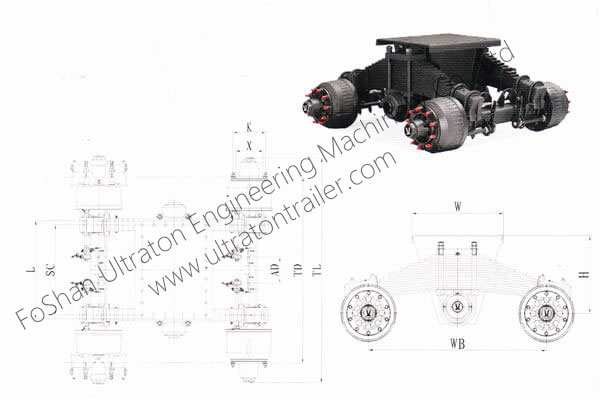

Bogie Suspension Series

High Mounting Bogie Suspension
Item	Capacity (T)	Track Length (mm)	Spring Center SC (mm)	Wheel Base (mm)	Height H (mm)	Wheel Stud	Tyre	Rim	Weight	Total Length (mm)	Wheel Type	High Mounting Bracket W*L (mm)
U3601H	2*18	1840	900	1550	660	6-M20*2	12.00R24	8.5-24	2674	2250	Six Spoke Wheel	800*980
U3611H	2*18	1840	900	1550	660	10-M22*1.5	12.00R20	8.50V-20	2512	2250	Disc Wheel	800*980
U3201H	2*16	1840	900	1550	660	6-M20*2	12.00R24	8.5-24	2646	2250	Six Spoke Wheel	800*980
U3211H	2*16	1840	900	1550	660	10-M22*1.5	12.00R20	8.50V-20	2490	2250	Disc Wheel	800*980
U2801H	2*14	1840	900	1550	660	6-M20*2	12.00R24	8.5-24	2490	2235	Six Spoke Wheel	800*980
U2811H	2*14	1840	900	1550	660	10-M22*1.5	12.00R20	8.50V-20	2406	2190	Disc Wheel	800*980
U2401H	2*12	1840	980	1550	660	6-M20*2	12.00R24	8.5-24	2088	2150	Six Spoke Wheel	800*980
U2411H	2*12	1840	980	1400	660	10-M22*1.5	12.00R20	7.50V-20	1942	2160	Disc Wheel	800980 700980 700*1060
Low Mounting Bogie Suspension
Item	Capacity (T)	Track Length (mm)	Spring Center SC (mm)	Wheel Base (mm)	Height H (mm)	Wheel Stud	Tyre	Rim	Weight	Total Length (mm)	Wheel Type	Support Center AM (mm)
U3602L	2*18	1840	900	1550	263	6-M20*3	12.00R24	8.5-24	2538	2250	Six Spoke Wheel	520
U3612L	2*18	1840	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2376	2250	Disc Wheel	520
U3612L1	2*18	1850	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2376	2235	Disc Wheel	520
U3202L	2*16	1840	900	1550	263	6-M20*3	12.00R24	8.5-24	2510	2250	Six Spoke Wheel	520
U3212L	2*16	1840	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2354	2250	Disc Wheel	520
U3212L1	2*16	1850	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2354	2235	Disc Wheel	520
U2802L	2*14	1840	900	1550	263	6-M20*3	12.00R24	8.5-24	2402	2190	Six Spoke Wheel	520
U3812L	2*14	1840	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2270	2190	Disc Wheel	520
U3812L1	2*14	1850	900	1550	263	10-M22*1.5	12.00R20	8.50-20	2270	2175	Disc Wheel	520
U2402L	2*12	1850	980	1500	245	6-M20*3	12.00R24	8.5-24	1913	2150	Six Spoke Wheel	660
U2403L	2*12	1850	980	1400	245	6-M20*3	12.00R20	7.50V-20		2150	Six Spoke Wheel	660
U2412L	2*12	1840	980	1400	245	10-M22*1.5	12.00R20	7.50V-20	1767	2160	Disc Wheel	660
U2413L1	2*12	1840	980	1400	245	10-M22*1.5	12.00R20	7.50V-20	1767	2145	Disc Wheel	660

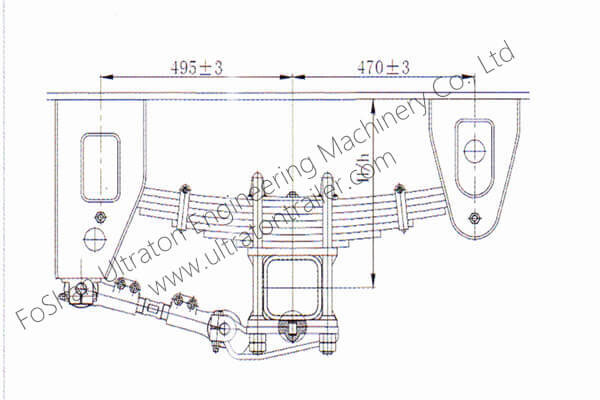

Mechanical Suspension Series

Single Suspension With 7 Leaf Springs 79016
Suspension Series	Model			Unit(mm)				Leaf Springs Specification		Capacity(T)		Axle
				H		h
American Type Single Suspension	UMX101			387		357		90167		13		□150 / ○127
	UMX102			412		382		90167		13
	UMX103			437		407		90167		13

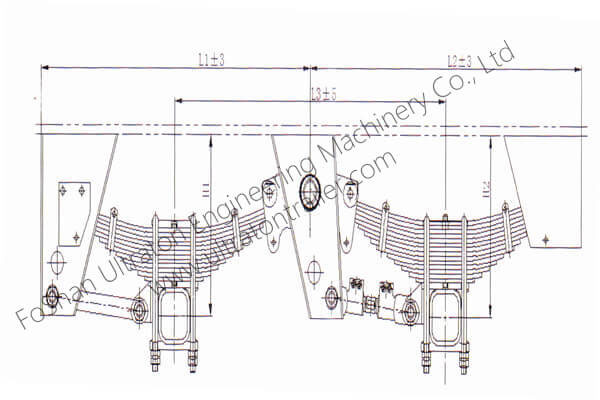

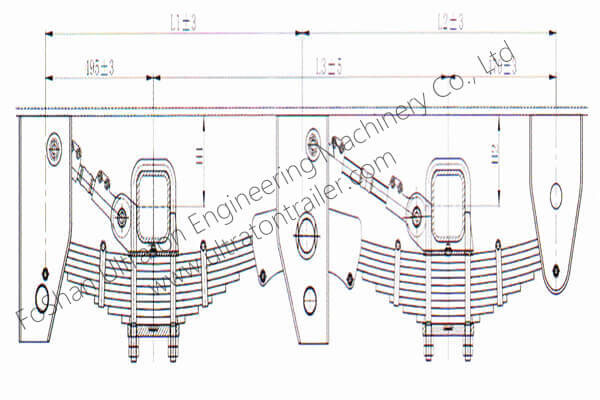

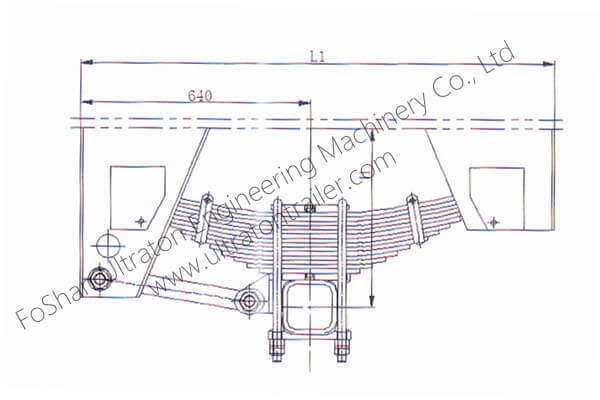

Tandem Suspension With 7 Leaf Springs 79016
Suspension Series	Model			Unit(mm)								Leaf Springs Specification	Capacity(T)	Axle
				H1	h1	H2	h2	H	L1	L2	L3
American Type Tandem Suspension	UMX201			395	365	387	357	150	1135	1165	1310	90167	13*2	□150 / ○127
	UMX202			420	390	412	382	175	1135	1165	1310	90167	13*2
	UMX203			445	415	437	407	200	1135	1165	1310	90167	13*2

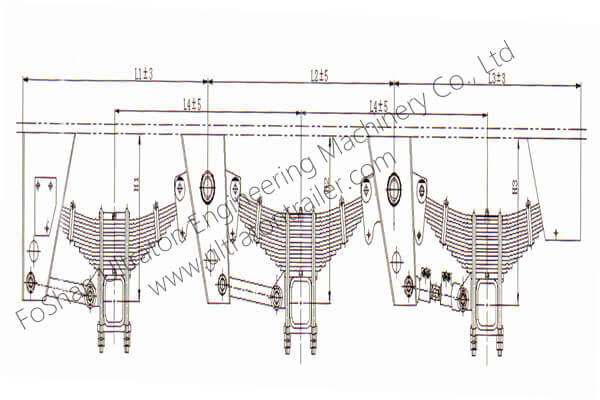

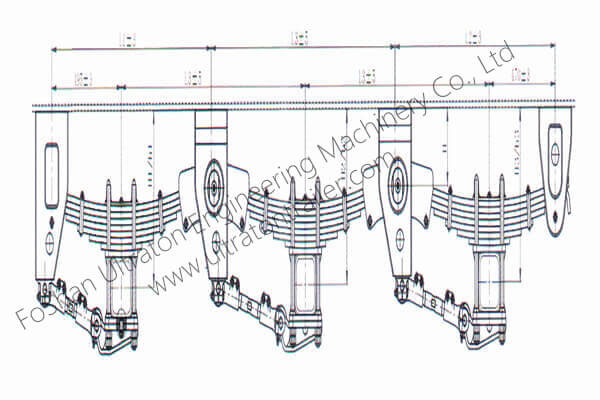

Tridem Suspension With 7 Leaf Springs 79016
Suspension Series	Model	Unit(mm)										Leaf Springs Specification	Capacity(T)	Axle
		H1	h1	H2	h2	H3	h3	H	L1	L2	L3
American Type TRidem Suspension	UMX301	415	385	406	376	393	363	172	1135	1165	1310	90167	13*3	□150 / ○127
	UMX302	440	410	431	401	418	388	197	1135	1165	1310	90167	13*3
	UMX303	465	425	456	426	443	413	222	1135	1165	1310	90167	13*3

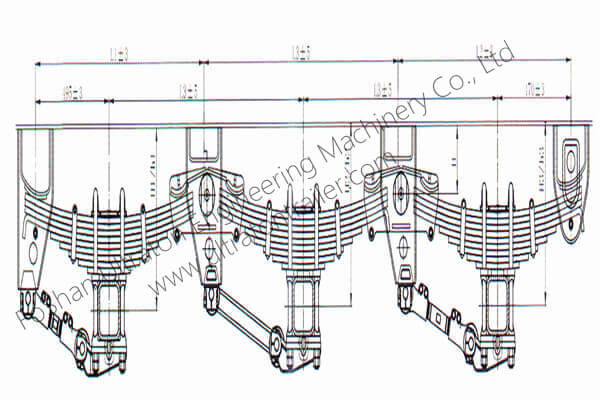

Tridem Suspension With 9 Leaf Springs 99016
Suspension Series	Model	Unit(mm)										Leaf Springs Specification	Capacity(T)	Axle
		H1	h1	H2	h2	H3	h3	H	L1	L2	L3
American Type TRidem Suspension	UMX306	422	396	409	379	397	367	135	1135	1140	1310	90169	16*3	□150
	UMX307	447	417	434	404	422	392	160	1135	1140	1310	90169	16*3
	UMX308	472	442	459	429	447	413	222	1135	1165	1310	90169	16*3
Tandem Suspension With 9 Leaf Springs 99016
Suspension Series		Model		Unit(mm)					Leaf Springs Specification				Capacity(T)	Axle
				H1	L1	L2	L3
American Type Tandem Suspension (Underslung)		UMX206		250	1135	1140	1310		90169				16*2	□150
		UMX207		250	1160	1165	1360		90169				16*2
		UMX208		250	1230	1235	1500		90169				16*2

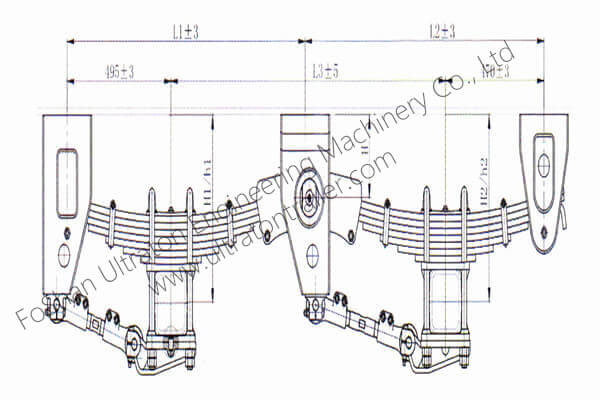

German Type Mechanical Suspension Series
Suspension Series		Model		Unit(mm)							Leaf Springs Specification		Capacity(T)	Axle
				H1	H2	H3	L1	L2	L3	L4
German Type Single Suspension		UDX101		490	/	/	1320	/	/	/	1001211		12	□150 / ○127
		UDX102		490	/	/	1320	/	/	/	1001212		14	□150
		UDX102		490	/	/	1320	/	/	/	1001214		16	□150
German Type Tandem Suspension		UDX201		490	490	/	1320	1360	1330	/	1001211		12*2	□150 / ○127
		UDX202		490	490	/	1320	1360	1330	/	1001212		14*2	□150
		UDX203		490	490	/	1320	1360	1330	/	1001214		16*2	□150
German Type Tridem Suspension		UDX301		490	490	490	1320	1360	1330	1360	1001211		12*3	□150 / ○127
		UDX302		490	490	490	1320	1360	1330	1360	1001212		14*3	□150
		UDX303		490	490	490	1320	1360	1330	1360	1001214		16*3	□150

Application of 悬挂系统

Ultraton Suspension Series is applicable on any Ultraton Semi Trailer.

Other notes of 悬挂系统

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
