Overview of FW68 型冲压式悬挂系列

Heavy duty and extra durability designed hangers by using stamping integrated forming instead of welding to improve strength
Material of superior quality option for SUP9 or 60Si2Mn for leaf spring
The grinding block is Q345/Q235 (or 20# cast steel) welded type
A grease lubrication nozzle is on equilizer wear block
Axle spacing is normal and standard
Equipped with 8x75x13 leaf spring
Design for 3 axles installation with 11Ton each
Applicable for round beam trailer axle
Installation is applicable for overslung

Advantage of FW68 型冲压式悬挂系列

Mature technology and reasonable design ensure good quality and competitive cost
Stamping integrated forming hangers instead of welding type to improve strength
Simple structure makes easy maintenance
Lighter weight design can meet different need
Flexible design on axle spacing available with 1360mm, 1537mm, 1232mm can meet different need
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

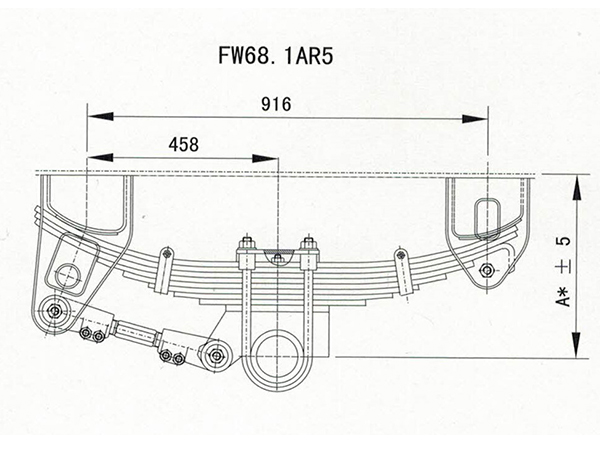

FW68.1 AR5 Single Suspension With Eight Leaf Springs. Dimension:87513
Model		A (mm)			Axle Load (KG)
FW68.10HAR5		440			11,000*1
FW68.10MAR5		415			11,000*1
FW68.10LAR5		390			11,000*1

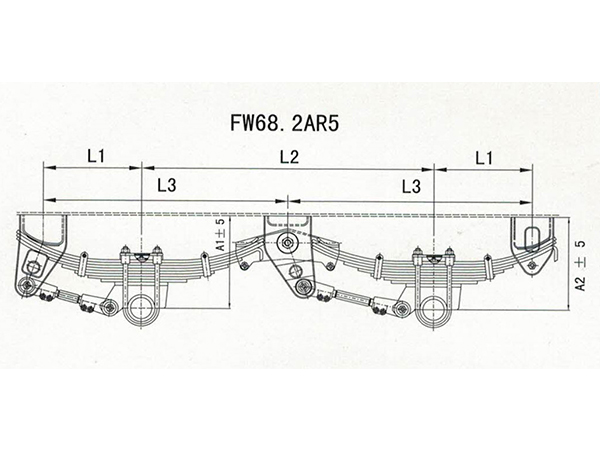

FW68.21AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1360). Dimension:87513
Model	A1 (mm)	A2 (mm)	L1 (mm)		L2 (mm)	L3 (mm)	Axle Load (KG)
FW68.21HHAR5	440	440	458		1360	1138	11,000*2
FW68.21MMAR5	415	415	458		1360	1138	11,000*2
FW68.21LLAR5	390	390	458		1360	1138	11,000*2
FW68.21HMAR5	440	415	458		1360	1138	11,000*2
FW68.21MLAR5	415	390	458		1360	1138	11,000*2
FW68.22 AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1537). Dimension:87513
Model	A1 (mm)	A2 (mm)	L1 (mm)		L2 (mm)	L3 (mm)	Axle Load (KG)
FW68.22HHAR5	440	440	458		1537	1226.5	11,000*2
FW68.22MMAR5	415	415	458		1537	1226.5	11,000*2
FW68.22LLAR5	390	390	458		1537	1226.5	11,000*2
FW68.22HMAR5	440	415	458		1537	1226.5	11,000*2
FW68.22MLAR5	415	390	458		1537	1226.5	11,000*2
FW68.23 AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1232). Dimension:87513
Model	A1 (mm)	A2 (mm)	L1 (mm)		L2 (mm)	L3 (mm)	Axle Load (KG)
FW68.23HHAR5	440	440	458		1232	1074	11,000*2
FW68.23MMAR5	415	415	458		1232	1074	11,000*2
FW68.23LLAR5	390	390	458		1232	1074	11,000*2
FW68.23HMAR5	440	415	458		1232	1074	11,000*2
FW68.23MLAR5	415	390	458		1232	1074	11,000*2

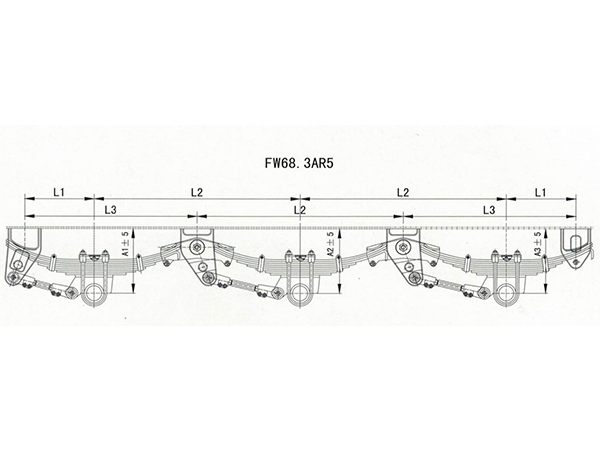

FW68.31 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1360). Dimension:87513
Model	A1(mm)	A2(mm)	A3(mm)	L1(mm)	L2(mm)	L3(mm)	Axle Load(KG)
FW68.31HHHAR5	440	440	440	458	1360	1138	11,000*3
FW68.31MMMAR5	415	415	415	458	1360	1138	11,000*3
FW68.31LLLAR5	390	390	390	458	1360	1138	11,000*3
FW68.31HMLAR5	440	415	390	458	1360	1138	11,000*3
FW68.32 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1537). Dimension:87513
Model	A1(mm)	A2(mm)	A3(mm)	L1(mm)	L2(mm)	L3(mm)	Axle Load(KG)
FW68.32HHHAR5	440	440	440	458	1537	1226.5	11,000*3
FW68.32MMMAR5	415	415	415	458	1537	1226.5	11,000*3
FW68.32LLLAR5	390	390	390	458	1537	1226.5	11,000*3
FW68.32HMLAR5	440	415	390	458	1537	1226.5	11,000*3
FW68.33 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1232). Dimension:87513
Model	A1(mm)	A2(mm)	A3(mm)	L1(mm)	L2(mm)	L3(mm)	Axle Load(KG)
FW68.33HHHAR5	440	440	440	458	1232	1074	11,000*3
FW68.33MMMAR5	415	415	415	458	1232	1074	11,000*3
FW68.33LLLAR5	390	390	390	458	1232	1074	11,000*3
FW68.33HMLAR5	440	415	390	458	1232	1074	11,000*3
Note: (1) Torque Settings Torque Arm Pin Nuts: 150/200N.M. Torque Arm Pin Bolts: 90/100N.M. Equaliser Shaft Nuts: 290/350N.M. ‘U’ Bolts Nuts: 500/540N.M. Drop Out Bolts: 75/85N.M. (2) Tolerance On All Dimensions: ±3 (3) Fit Fixed Torque Arms On Kerb Side Of Trailer (4) Suitable For Round/Square Axles (5) Spring Quantity Is Optional

Application of FW68 型冲压式悬挂系列

FH68 type Stamping Suspension Series is applicable on any Ultraton Semi Trailer in light weight need and different need on workmanship of hanger.

Other notes of FW68 型冲压式悬挂系列

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
