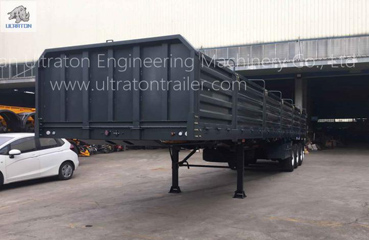

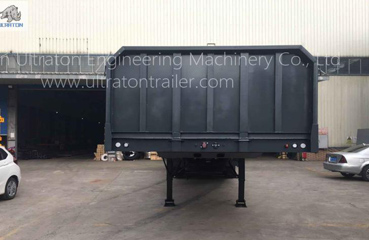

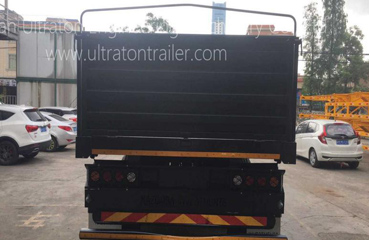

Overview of 3轴60吨侧墙半挂车

Heavy duty and extra durability designed for main I beam
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345

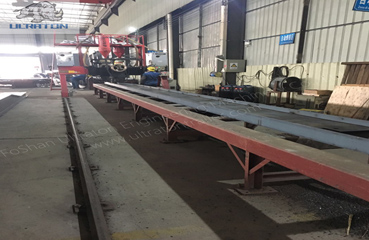

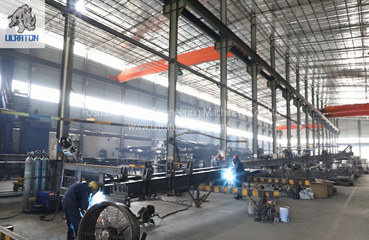

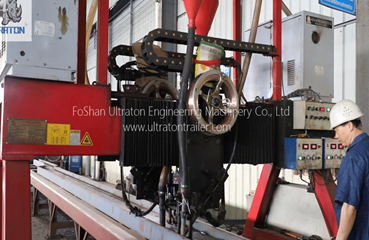

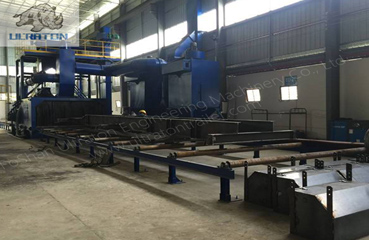

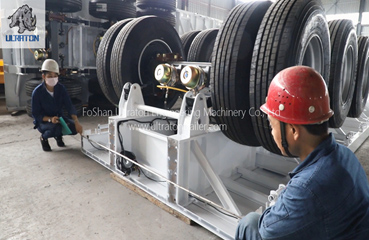

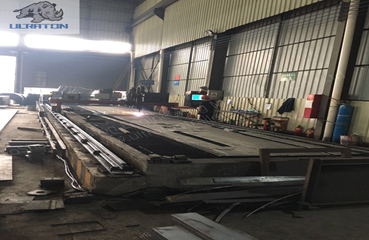

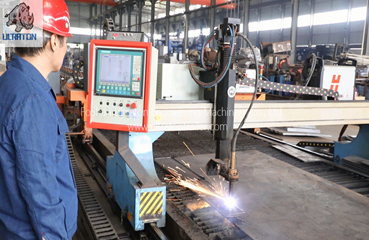

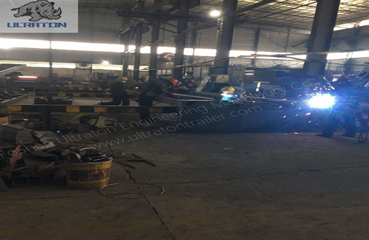

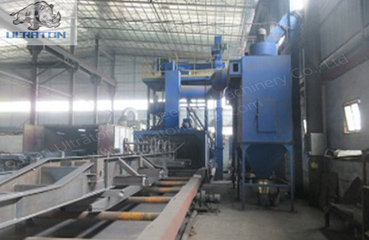

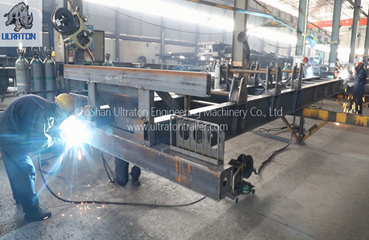

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust
Equipped with 3 pieces of 20T German type or American type semi trailer axle; Optional for brands
Mechanical suspension or air suspension for choice
Removable side wall is optional
Other core components are of superior quality and famous brand. Details are outlined as below.

Advantage of 3轴60吨侧墙半挂车

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance and efficient space.
Practical design with high strength to transport specific goods
Packing solution in CKD/ SKD/CBU is optional according to different project.
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

Technical Parameter	3 Axles 60 Ton Side Wall Semi Trailer
Tare Weight(KG)	6300KG
Loading Capacity(KG)	60000KG

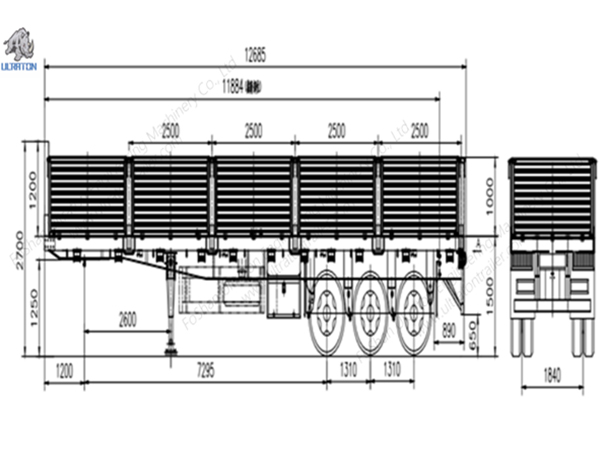

Dimension(mm)	1300025002760
Main Beam	The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin	2'' / 3.5'' ,Welded/Bolt-In
Landing Gear	Standard 28Ton, FUWA Brand

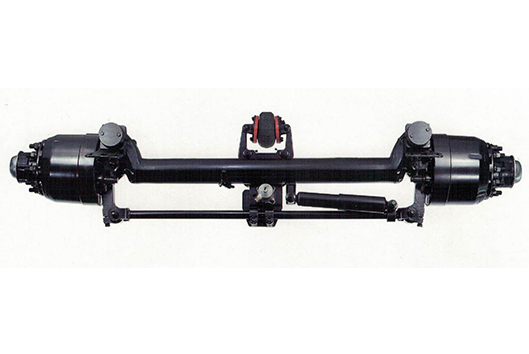

Axle	Standard FUWA Brand / BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension	Mechanical Suspension/Air Suspension, Standard FUWA Brand/BERTOIA Brand Optional: BPW Brand or HuaJing Brand
Suspension
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168
Leaf Spring	Standard FUWA Brand/BERTOIA Brand 90mm167 or 90168
Brake system	Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS.
Brake system
Electrical System	24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire	12.00R22.5 Tubeless,12 Units
Rim	9.0*22.5,12 Units

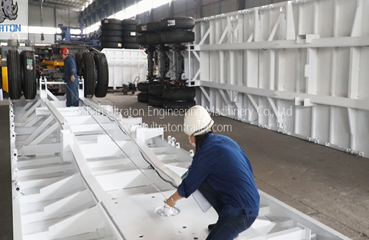

Shot Blasting & Painting	Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting
Shot Blasting & Painting
Mud Guard	Fabricated Mud Guard 6 nos
Tool Box	1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire Carrier	Equipped one sets per chassis without spare tire.
Side Board	According To Customer's Requirement
Front Baffle	According To Customer's Requirement
We Can Build The Trailer According To Customer's Design And Requirement.
