Overview of 轴

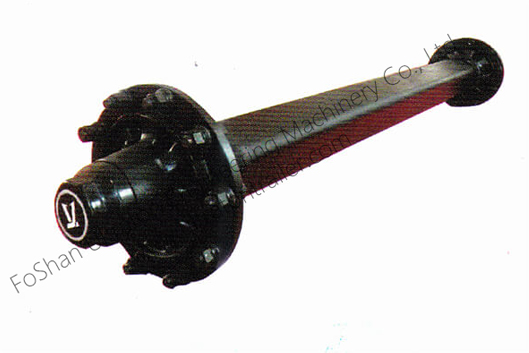

Advanced integrated one-piece design axle is made of seamless steel tube with special heat treatment made by low carbon alloy steel 20Mn2.

The critical part spindle is processed by sophisticated workmanship including hardening, tempering, quenching which ensure high quality and good performance.
Multiple designs on brake system available with brake drum and disc brake;
High performance non-asbestos brake linings of good quality and service life
Improved seals at camshafts for better and safer grease lubricant
Axle beam is available with round 127mm diameter, round 146mm and square 150mm type
Track length and camshaft length could be customized
Optional for automatic slack adjuster and ABS system

Advantage of 轴

1.Mature technology, could be produced in large quantity at competitive cost

2.Reasonable and strengthen design provides with more stability, greater capacity and longer service life

3.Accurate machining process increases stability and braking performance

4.Strictly selected sealing parts protect braking safety.

5. Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality

6. Durable design makes long maintenance cycle

7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

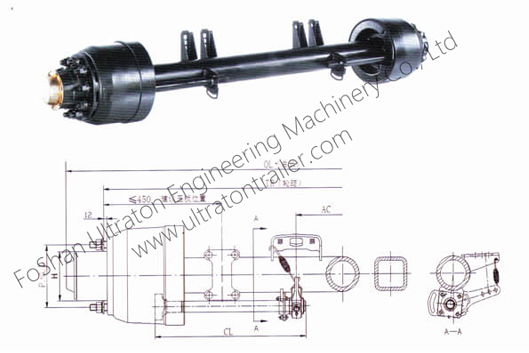

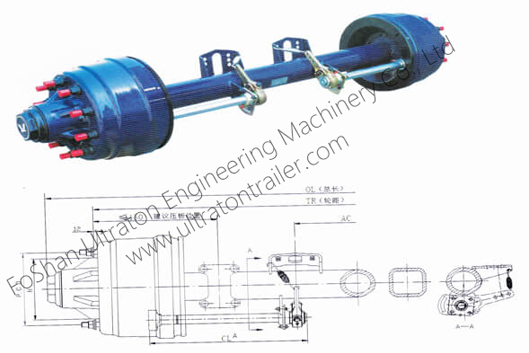

	German Type Axle Series
	Axle Type			105(km/h)				Brake Size (mm)			Track Length (mm)				Spline NO.				Axle Beam (mm)			Center Distance Of Chamber					Wheel Fixing						Total Length OL (mm)			Recommended Wheel
				Max.Capacity(kg)																		CL (mm)		AC (mm)			Studs (mm)		P.C.D. (mm)		Ø H (mm)
	UD0620NF			6,,000				S300*60			1500				32				□60			408		646			6-M22*1.5 ISO		205		161		1676			6.5-16

	UD0720NF			7,000				S300*60			1600				32				□70			408		713			6-M22*1.5 ISO		205		161		1847			6.5-16
	UD0820NF			8,000				S300*90			1800				38				□80			494		707			8-M22*1.5 ISO		275		220		2040			6.5-20/19.5*6.75
	UD0901NF			9,000				S420*180			2080				10				□120			691		515			10-M22*1.5 ISO		335		281		2398			7.5V-20
	UD1001NF			10,000				S420*180			2050				10				□127			691		507			10-M22*1.5 ISO		335		281		2392			7.5V-20
	UD1201NF			12,000				S420*180			1840				10				□150			591		423			10-M22*1.5 ISO		335		281		2158			7.5V-20
	UD1206NF			12,000				S420*200			1870				10				□150			641		285			10-M22*1.5 ISO		335		281		2188			7.5V-20
	UD1207NY			12,000				S420*200			1840				10				○127			641		255			10-M22*1.5 ISO		335		281		2158			7.5V-20
	UD1208NF/ECO			12,000				S420*180			1840				10				□150			591		423			10-M22*1.5 ISO		335		281		2156			7.5V-20
	UD1225NYAB			12,000				S420*180			2040				10				○127			641		519			10-M22*1.5 ISO		335		281		2356			7.5V-20
	UD1401NF			14,000				S420*200			1840				10				□150			641		255			10-M22*1.5 ISO		335		281		2190			8.00V-20
	UD1408NF			14,000				S420*200			1840				10				□150			641		275			10-M22*1.5 ISO		335		281		2190			8.00V-20
	UD1601NF			16,000				S420*200			1840				10				□150			641		252			10-M22*1.5 ISO		335		281		2258			8.5V-20
	UD1602NF1			16,000				S420*200			1840				10				□150			641		252			10-M22*1.5 ISO		335		281		2258			8.5V-20
	UD1604NF			16,000				S420*200			1872				10				□150			641		276			10-M22*1.5 ISO		335		281		2282			8.5V-20
	UD1801NF			18,000				S420*220			1840				10				□150			641		270			10-M22*1.5 ISO		335		281		2258			8.5V-20
	UD1801NF1			18,000				S420*220			1870				10				□150			641		300			10-M22*1.5 ISO		335		281		2288			8.5V-20
	UD1801NF3B			18,000				S420*220			2300				10				□150			641		730			10-M22*1.5 ISO		335		281		2718			8.5V-20

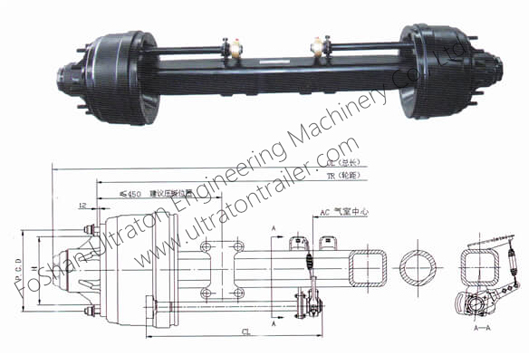

	American Type In-board Axle Series
	Axle Type			105(km/h)				Brake Size (mm)			Track Length (mm)				Spline NO.				Axle Beam (mm)			Center Distance Of Chamber					Wheel Fixing						Total Length OL (mm)			Recommended Wheel
				Max.Capacity(kg)																		CL (mm)		AC (mm)			Studs (mm)		P.C.D. (mm)		Ø H (mm)
	UM0801NY			8,000				S420*150			1850				37				○127			590		428			10-M22*1.5 ISO		335		282		~2148			7.50V-20
	UM1101NY			11,000				S311*190			1950				37				○127			665		340			10-M22*1.5 ISO		225		176		~2215			6.5-15/17.5*6.75
	UM1103NF			11,000				S311*190			2216				10				□120			665		600			10-M22*1.5 ISO		225		176		~2456			6.5-15/17.5*6.75
	UM1211NF			12,000				S420*180			1820				37				□127			590		367			10-M22*1.5 ISO		335		281		~2170			7.50V-20
	UM1304NF			13,000				S420*180			1840				37				□150			590		387			10-M22*1.5 ISO		335		281		~2190			7.50V-20
	UM1344NF			13,000				S406*220			1850				14				□150			590		357			8-M22*1.5 JIS		285		220		~2193			7.50V-20
	UM1365NYAB			13,000				S420*180			1840				10				○127			596		362			10-M22*1.5 ISO		335		281		~2194			7.50V-20
	UM1375NYAB			13,000				S420*180			1840				10				○127			664		233			10-M22*1.5 ISO		335		281		~2194			7.50V-20
	UM1401NF			14,000				S420*220			1840				37				□150			590		339			10-M22*1.5 ISO		335		281		~2196			8.00V-20
	UM1401NY			14,000				S420*220			1850				37				○127			590		357			10-M22*1.5 ISO		335		281		~2206			8.00V-20
	UM1415NF			14,000				S420*220			1840				37				□150			590		347			10-M22*1.5 ISO		335		281		~2196			8.00V-20
	UM1501NF			15,000				S420*180			1850				37				□150			590		396			10-M22*1.5 ISO		335		281		~2190			8.00V-20
	UM1601NF			16,000				S420*220			1850				37				□150			590		348			10-M22*1.5 ISO		335		281		~2216			8.00V-20
	UM2001NF			20,000				S420*220			1850				37				□150			590		351			10-M24*1.5 ISO		335		281		~2265			8.00V-20
	UM2003NF			20,000				S420*220			1850				37				□150			590		354			10-M24*1.5 ISO		335		281		~2252			8.00V-20

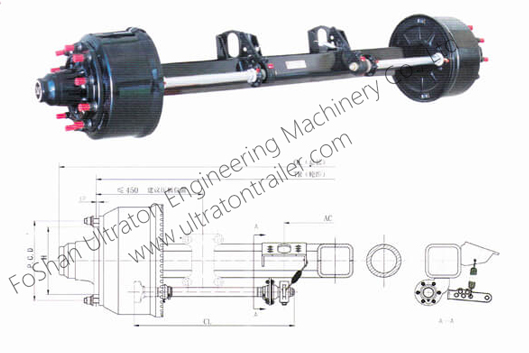

	American Type Out-board Axle Series
	Axle Type			105(km/h)				Brake Size (mm)			Track Length (mm)				Spline NO.				Axle Beam (mm)			Center Distance Of Chamber					Wheel Fixing						Total Length OL (mm)			Recommended Wheel
				Max.Capacity(kg)																		CL (mm)		AC (mm)			Studs (mm)		P.C.D. (mm)		Ø H (mm)
	UM1202WF			12,000				S420*180			1820				37				□127			590		370			10-M22*1.5 ISO		285.75		220		~2174			7.50V-20
	UM1303WF			13,000				S420*180			1840				37				□150			590		386			8-M20*1.5 JIS		285		221		~2194			7.50V-20
	UM1305WY			13,000				S420*180			1840				37				○127			590		385			10-M22*1.5 ISO		335		281		~2194			7.50V-20
	UM1306WF			13,000				S420*180			1840				37				□150			590		387			10-M22*1.5 ISO		335		281		~2194			7.50V-20
	UM1314WY			13,000				S420*180			1820				37				○127			590		365			10-7/8’’-11BSF		335		281		~2174			7.50V-20
	UM1316WY			13,000				S420*220			1890				28				○127			603		403			10-M22*1.5 ISO		335		281		~2244			7.50V-20
	UM1319WY			13,000				S420*180			1820				28				○127			603		340			10-M22*1.5 ISO		335		281		~2085			7.50V-20
	UM1337WF			13,000				S420*200			1968				37				□127			590		448			10-M22*1.5 ISO		285.75		220		~2327			7.50V-20
	UM1338WY			13,000				S420*200			1968				37				○127			590		448			10-M22*1.5 ISO		285.75		220		~2327			7.50V-20
	UM1321WYAB			13,000				S420*180			1968				28				○127			648		400			10-M22*1.5 ISO		285.75		220		~2236			7.50V-20
	UM1321WY1AB			13,000				S420*180			1816				28				○127			648		247			10-M22*1.5 ISO		285.75		220		~2084			7.50V-20
	UM1368WYAB			13,000				S420*180			1944				37				○127			728		268			10-M22*1.5 ISO		335		281		~2213			7.50V-20
	UM1373WYAB			13,000				S420*180			1976				28				○146			648		409			10-M22*1.5 ISO		335		281		~2275			7.50V-20
	UM1324WF			13,000				S420*220			1850				10				□150			590		346			8-M20*1.5 JIS		285		220		~2165			7.50V-20

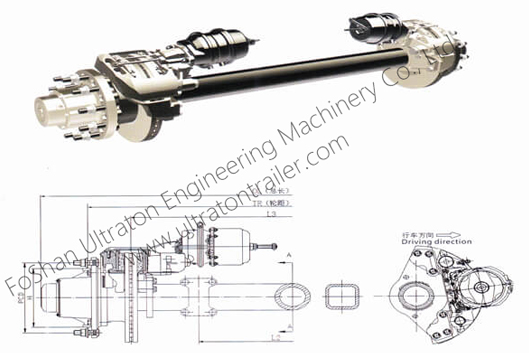

	Disc Brake Axle Series
	Axle Type	105(km/h)					Brake Size (mm)			Track Length (mm)				Disc TR (mm)			Spring Beam (mm)				Axle Beam (mm)				Wheel Fixing							Total Length OL (mm)			Recommended Wheel
		Max.Capacity(kg)																							Studs (mm)			P.C.D. (mm)		Ø H (mm)
	UP0901FB	9,000					S434*45			2040				1721			1300				□120				10-M22*1.5 ISO			335		281		~2156			22.50*8.25
	UP1151YB	11,000					S434*45			1840				1531			980				○127				10-M22*1.5 ISO			335		281		~2196			22.50*8.25
	UP1152YB	11,000					S434*45			1816				1521			900				○127				10-M22*1.5 ISO			335		281		~2076			22.50*8.25
	UP1159YB	11,000					S430*45			1969				1659			980				○127				10-M22*1.5 ISO			335		281		~2331			22.50*8.25

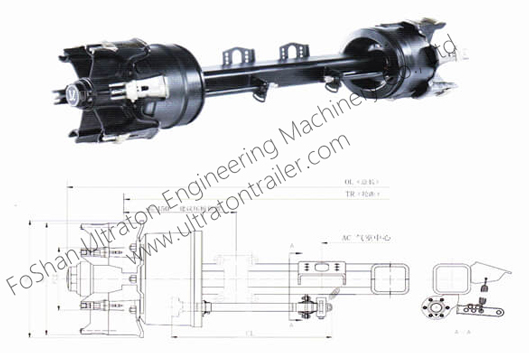

	Low Bed Axle Series
	Axle Type			105(km/h)				Brake Size (mm)			Track Length (mm)				Spline NO.				Axle Beam (mm)			Center Distance Of Chamber					Wheel Fixing						Total Length OL (mm)			Recommended Wheel
				Max.Capacity(kg)																		CL (mm)		AC (mm)			Studs (mm)		P.C.D. (mm)		Ø H (mm)
	UM1101NY			11,000				S311*190			1950				37				○127			665		340			10-M22*1.5 ISO		225		176		~2215			6.5-15
																																				17.5*6.75
	UM1102NY			11,000				S311*190			1850				37				○127			665		234			10-M22*1.5 ISO		225		176		~2180			6.5-15
																																				17.5*6.75
	UM1103NF			11,000				S311*190			2216				10				□120			665		600			10-M22*1.5 ISO		225		176		~2546			6.5-15
																																				17.5*6.75
	UD1101NF/ECO			11,000				S300*200			2064				10				□120			723		391			10-M22*1.5 ISO		225		176		~2346			6.5-16
Spoke Wheel Axle Series
Axle Type			105(km/h)			Brake Size (mm)			Track Length (mm)				Spline NO.			Axle Beam (mm)				Center Distance Of Chamber						Wheel Fixing								Total Length OL (mm)			Recommended Wheel
			Max.Capacity (kg)																	CL (mm)			AC (mm)		Studs (mm)			P.C.D. (mm)		Ø H1 (mm)		Ø H2 (mm)
With German Type Axle Specifications
UD1201LF			12,000			S420*180			1840				10			□150				591			367		6-M20*1.5 ISO			335		Ø 553.5		Ø 579	2136			8.0-24''
UD1202LF			12,000			S420*200			1840				10			□150				641			255		6-M20*1.5 ISO			335		Ø 553.5		Ø 579	2136			8.5-24''
UD1403LF			14,000			Ø 420*200			1840				10			□150				641			255		6-M20*1.5 ISO			335		Ø 553.5		Ø 579	2200			8.5-24''
UD1601LF			16,000			Ø 420*200			1840				10			□150				641			255		6-M20*1.5 ISO			335		Ø 553.5		Ø 579	2240			8.5-24''
UD180LF			18,000			Ø 420*200			1840				10			□150				641			255		6-M20*1.5 ISO			335		Ø 553.5		Ø 579	2240			8.5-24''
With American Type Axle Specifications
UM1001LY			10,000			Ø 420*180			1840				37/28/10			○127				590			349		6* 3/4''-10			285.75		471		492	2170			20''
UM1003LY			10,000			Ø 420*180			1840				37/28/10			○127				590			349		6* 3/4''-10			285.75		471		492	2170			20''
UM1101LY			11,000			Ø 420*180			1850				37/28/10			○127				590			351		5* 3/4''-10			279.5		471		492	2093			20''
UM1205LY			12,000			Ø 420*180			1840				37/28/10			○127				590			349		6* 3/4''-10			285.75		471		492	2170			20''
Without Brake System Axle Series
Axle Type					Capacity (T)							Axle Beam (mm)						Track Length L1 (mm)					Wheel Fixing											Total Length L2 (mm)
																							P.C.D(mm)				Polit Hole Diameter(Ø H)(mm)				Stud
UD1212NF					12,000							□150						2200					335				281				10-M22*1.5 ISO			2542
UD1212NF1					12,000							□150						2494					335				281				10-M22*1.5 ISO			2836

Application of 轴

Ultraton trailer axle series can be applicable on any Ultraton Semi Trailer.

Other notes of 轴

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc.

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
