Overview of FW35 着陆装置系列

Extra heavy duty and durability designed
Advanced gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
High gear and low gear is optional for different speed
Widen and strengthen backing mounting plate is optional for greater load bearing capacity and extended life
Type A, G, S, R, T , C shoes available for different use
One side operation with crank
Design of crank is optional
More choice on lifting distance
Meet Safety Regulations for commercial vehicles

Advantage of FW35 着陆装置系列

Mature technology and workmanship offers more stability, greater capacity and longer service life.
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality.
Various choice of backing mounting plate and shoes can meet different condition need.
Fast response and flexible service from our professional team.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

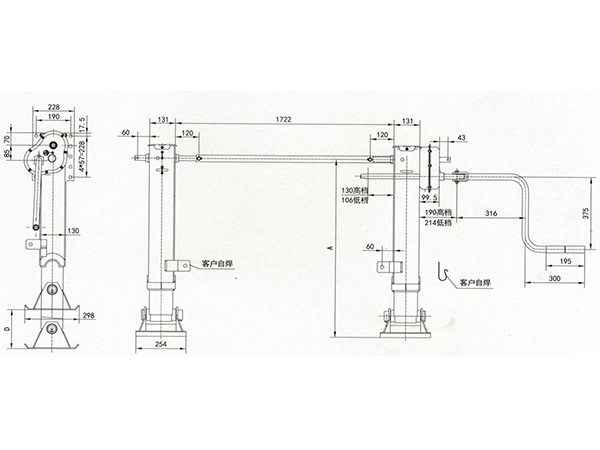

One Side Operation Landing Gear Assy
Model	Types Of Shoes	Lift D (mm)	Height A (mm)
FW3514C	C	360	652
FW3514A	A	360	743
FW3514G	G	360	699
FW3514R	R	360	726
FW3514S	S	360	751
FW3514T	T	360	723
FW3514LT	LT	360	662
FW3517C	C	430	722
FW3517A	A	430	813
FW3517G	G	430	769
FW3517R	R	430	796
FW3517S	S	430	821
FW3517T	T	430	793
FW3517LT	LT	430	732
FW3519C	C	480	772
FW3519A	A	480	863
FW3519G	G	480	819
FW3519R	R	480	846
FW3519S	S	480	871
FW3519T	T	480	843
FW3519LT	LT	480	782
Standard Specifications Capacity 28,000KG/Pair Static Load 80,000KG/Pair Weight 110KG Crank Force Low Gear 1.0mm Per Turn(mm/r) Of Handle High Gear 7.5mm Per Turn(mm/r) Of Handle One Side Operation Crank Force 28T-33.5KG

FW35 Landing Gear Series is applicable on any Ultraton Semi Trailer
