富华下沉式中心轴系列

物流支柱：了解40英尺骨架半挂车的作用

FUWA 中置下凹车轴系列采用特殊设计，车轴梁呈凹形，可满足您的多样化需求。

  • Overview
  • Advantage
  • Application
  • Other notes

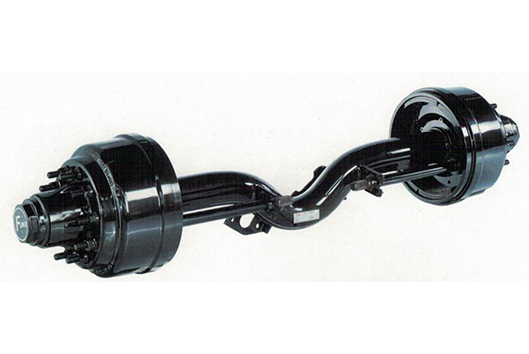

Overview of 富华下沉式中心轴系列

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • Special processed spindle with induction hardened bearing journals

  • Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation

  • High performance non-asbestos brake linings of good quality and service life

  • Improved seals at camshafts for better and safer grease lubricant

  • Axle beam is available with round 127mm diameter

  • Track length and camshaft length could be customized

  • Axle meets USA and Australian standard


  • 富华下沉式中心轴系列

Advantage of 富华下沉式中心轴系列

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life.

  2. Special processed spindle journals provide superior fatigue capability.

  3. Accurate machining process increases stability and braking performance.

  4. Strictly selected sealing parts protect braking safety.

  5. Unique axle beam design can meet complicated road condition.

  6. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

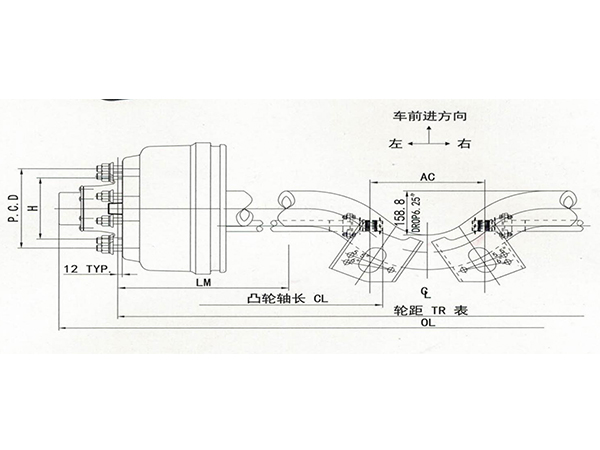

Axle Type

Axle Beam Size(mm)

105(km/h)

Max. Capacity kg/1bs

'S' Cam Brake

Series Ø*Width(mm)

Track/ Center Distance Of Brake Chamber (mm)

Spring Center Installation

Spline

Wheel Fixing

Total Length

OL(mm)

Recommended Wheel

Note

1816/71.5

1841.5/72.5

1968.5/77.8

LM(mm/Inch)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

CL

AC

CL

AC

CL

AC

FN6008AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-091

○127*15

9,000/22,500

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

6''Low-Loader&Drop Center Axle

○127*19

10,200/25,000

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5


FN6008AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6006AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6003AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-092

○127*15

9,000/20,000

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

6''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5


FN6008-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20


FN6008AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-992

○127*15

9,000/20,000

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

9''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

FN6008AM-993

○127*15

9,000/20,000

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

9''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

Note: Axle Head: FP Inner: HM518445/10   Outer: HM518445/10

    Axle Head: FN Inner: HM218248/10   Outer: HM212049/11



Application of 富华下沉式中心轴系列

FUWA Drop Center Axle Series is recommended to use on Low Bed Semi Trailer.

Other notes of 富华下沉式中心轴系列

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
