美式空气悬挂系列
美式空气悬挂系列是相较于传统机械悬挂系统更为先进且更轻便的悬挂系统，旨在提供舒适性与灵活性。
- Overview
- Advantage
- Application
- Other notes

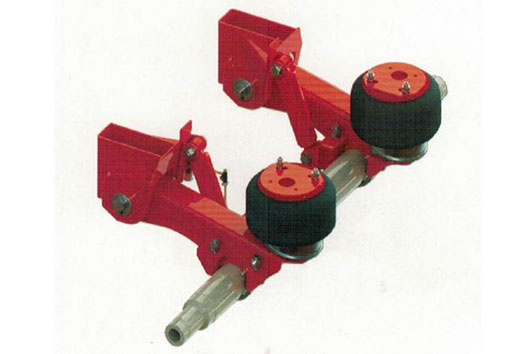

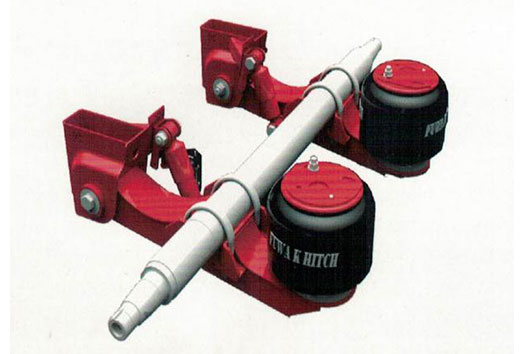

Overview of 美式空气悬挂系列
Heavy duty and extra durability designed
Mostly applicable for round beam trailer axle
Simpler structure welded by steel plate for guide arm
Superior quality and elastic air bag
Installation is optional for overslung and underslung for different need
Advantage of 美式空气悬挂系列
Mature technology and reasonable design ensure good quality and competitive cost
American Style Air Suspension Series uses air spring as the spring element, air as the elastic medium, and the air compressibility to achieve elastic operation, which greatly improves the suspension comfort and reaction sensitivity.
Elastic element makes less noise during working
2-3 times durable with longer life time than traditional mechanical suspension
Guide arm welded by steel plate makes lighter weight and lower in fuel consumption
Deflating the air bag by remote control, height sensor, control valve, etc. to change the height of the vehicle body, making loading and unloading or detaching more convenient
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

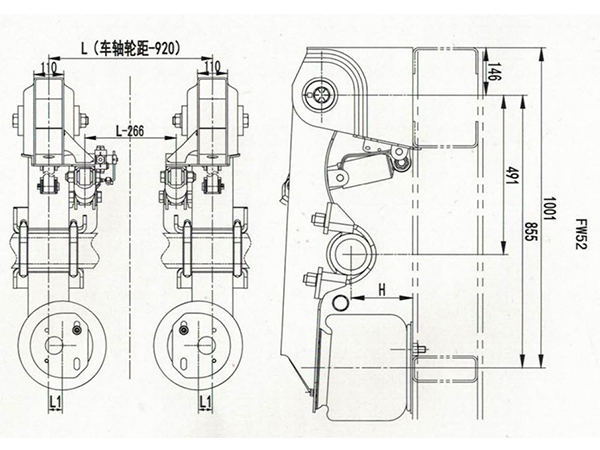

FW52 Type Air Suspension, USA Style(Positive Assembly) | |||||
Model | H (mm) | L1 (mm) | Wheelbase (mm) | Air Bag Spec(mm) | Axle Load (KG) |
FW52-11/381-AR5 | 381 | 63.5 | 1220-1360 | Ø343 | 11,000 |
FW52-11/406-AR5 | 406 | 63.5 | 1220-1360 | Ø343 | 11,000 |
FW52-11/432-AR5 | 432 | 63.5 | 1220-1360 | Ø343 | 11,000 |
FW52-11/483-AR5 | 483 | 63.5 | 1220-1360 | Ø343 | 11,000 |
FW52-11/381-AR5 | 381 | 75 | 1220-1360 | Ø381 | 11,000 |
FW52-11/406-AR5 | 406 | 75 | 1220-1360 | Ø381 | 11,000 |
FW52-11/432-AR5 | 432 | 75 | 1220-1360 | Ø381 | 11,000 |
FW52-11/483-AR5 | 483 | 75 | 1220-1360 | Ø381 | 11,000 |

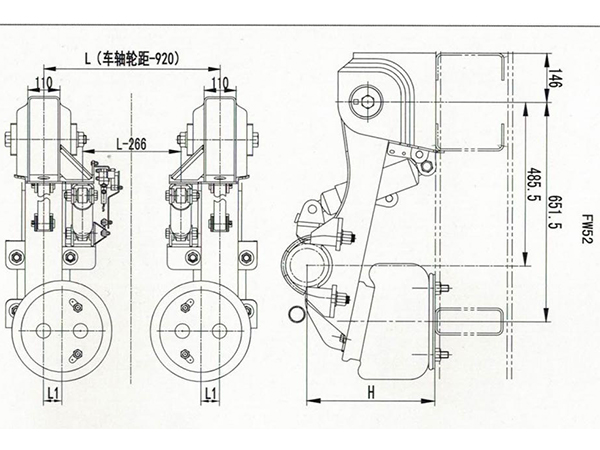

FW52 Type Air Suspension, USA Style(Reverse Assembly) | |||||
Model | H (mm) | L1 (mm) | Wheelbase (mm) | Air Bag Spec(mm) | Axle Load (KG) |
FW52-11/305-BR5 | 305 | 51 | 1220-1360 | Ø325 | 11,000 |
FW52-11/280-BR5 | 280 | 51 | 1220-1360 | Ø325 | 11,000 |
FW52-11/254-BR5 | 254 | 51 | 1220-1360 | Ø325 | 11,000 |
FW52-11/229-BR5 | 229 | 51 | 1220-1360 | Ø325 | 11,000 |
FW52-11/203-BR5 | 203 | 51 | 1220-1360 | Ø325 | 11,000 |
FW52-11/305-BR5 | 305 | 51 | 1220-1360 | Ø348 | 11,000 |
FW52-11/280-BR5 | 280 | 51 | 1220-1360 | Ø348 | 11,000 |
FW52-11/254-BR5 | 254 | 51 | 1220-1360 | Ø348 | 11,000 |
FW52-11/229-BR5 | 229 | 51 | 1220-1360 | Ø348 | 11,000 |
FW52-11/203-BR5 | 203 | 51 | 1220-1360 | Ø348 | 11,000 |
Application of 美式空气悬挂系列
American Style Air Suspension is applicable on any Ultraton Semi Trailer as important part to improve ride comfort and flexibility of vehicle, reduce damage to cargo during transportation.
